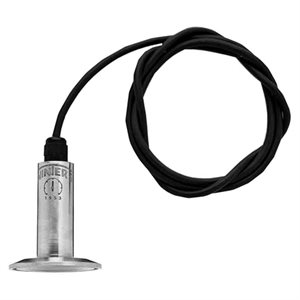

LST 3A Sanitary Pressure Transmitter




APPLICATIONS:

  • Designed for all sanitary applications including food & beverage, dairy, pharmaceutical and biotechnical
  • Built to withstand the harshest of sanitary applications and where 3A approval is required
  • For gas, air, liquid, pasty or powdery media

DESCRIPTION & FEATURES:

  • Constructed of 316 and 316L welded stainless steel, NEMA 4X rated
  • 3A approved
  • Excellent accuracy rating of ±0.25% full scale output
  • Available with a 0.5” (13mm) to 5” (127mm) Tri-Clamp®
  • Pressure ranges 0/3 to 1,000 psi
  • 5 year warranty

DOCUMENTATION:

Electrical Output Signal 4-20mA, 2 wire (optional 0/5 Vdc, 3 wire)
Electrical Connector 10' (3m) cable, flying leads
Excitation Voltage 8-38 Vdc
Accuracy ±0.25% ANSI/ASME Grade 3A
EMI/RFI Enclosure Rating Meets and exceeds CE standards
Wetted Parts/Connection 316L SS Tri-Clamp®
Housing 316 SS
Enclosure Rating NEMA 4X (IP65)
Proof Pressure 2X full scale
Burst Pressure 5X full scale (maximum 3,000 psi)
Normal Operating Temperature Range -40°F to 200°F (-40°C to 93°C)
Long Term Stability ≤0.25%/yr
Weight 10 oz (283g)

  • Display Type
  • Results Per Page
  • Sort By
REPLACED BY LST1101T5GT26S

  • Contact us for pricing

  • Qty avail.: 0
REPLACED BY LST1101T5GT46S

  • Contact us for pricing

  • Qty avail.: 0
REPLACED BY LST1102S5GT46S

  • Contact us for pricing

  • Qty avail.: 0
REPLACED BY LST1103T5GT26S

  • Contact us for pricing

  • Qty avail.: 0
REPLACED BY LST1103T5GT46S

  • Contact us for pricing

  • Qty avail.: 0
REPLACED BY LST1104S5GT26S

  • Contact us for pricing

  • Qty avail.: 0
REPLACED BY LST1104S5GT46S

  • Contact us for pricing

  • Qty avail.: 0
REPLACED BY LST1106S5GT26S

  • Contact us for pricing

  • Qty avail.: 0
REPLACED BY LST1106S5GT46S

  • Contact us for pricing

  • Qty avail.: 0
REPLACED BY LST1108S5GT26S

  • Contact us for pricing

  • Qty avail.: 0
