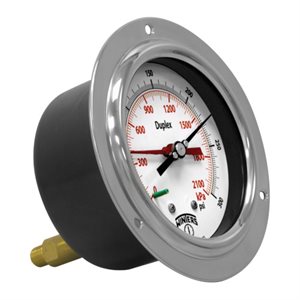

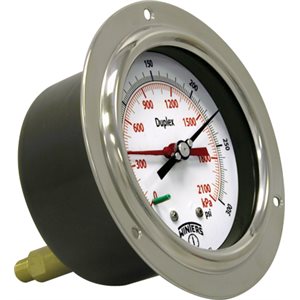

PDX Duplex Gauge




APPLICATIONS:

  • Comparing two separate process pressures on the same gauge
  • Utilized on pump and filter applications

DESCRIPTION & FEATURES:

  • Heavy duty, highly accurate, aluminum case
  • Brass and stainless steel wetted parts available
  • Two separate bourdon tubes and pointers
  • One red and one black pointer
  • ASME B40.100 compliant
  • CRN registered
  • 5 year warranty

DOCUMENTATION:

Dial 4.5” (115mm), 6” (150mm) white aluminum with black markings
Case Aluminum, painted black
Front Flange SS
Back Flange Black steel
Lens Glass
Ring 4.5” (115mm): SS
6” (150mm): Aluminum
Socket Brass or 316 SS
Connections 1/4” NPT standard
Scale PSI only
Bourdon Tubes Phosphor bronze or AISI 316 SS, independent, matched
Movement Brass
Pointer Aluminum, micrometer
Welding Tin/copper alloy for brass internals, TIG argonarc for SS internals
Over-Pressure Limit 30% of full scale value
Working Pressure Maximum 75% of full scale value
Ambient/Process Temperature -40°F to 150°F (-40°C to 65°C)
Accuracy ±1% ANSI/ASME Grade 1A
Warning Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov.

  • Display Type
  • Results Per Page
  • Sort By
4" BRASS DUPLEX 0-60 PSI 1 / 4" NPT
  • USD $1,121.49 /EACH
  • EACH
  • Qty avail.: 0
4.5" BRASS DUPLEX 0-100 PSI 1 / 4" NPT
  • USD $932.62 /EACH
  • EACH
  • Qty avail.: 0
4.5" BRASS DUPLEX 0-15 PSI 1 / 4" NPT
  • USD $932.62 /EACH
  • EACH
  • Qty avail.: 0
4.5" BRASS DUPLEX 0-160 PSI 1 / 4" NPT
  • USD $932.62 /EACH
  • EACH
  • Qty avail.: 0
4.5" BRASS DUPLEX 0-200 PSI 1 / 4" NPT
  • USD $932.62 /EACH
  • EACH
  • Qty avail.: 0
4.5" BRASS DUPLEX 0-30 PSI 1 / 4" NPT
  • USD $932.62 /EACH
  • EACH
  • Qty avail.: 0
4.5" BRASS DUPLEX 0-300 PSI 1 / 4" NPT
  • USD $932.62 /EACH
  • EACH
  • Qty avail.: 0
4.5" BRASS DUPLEX 0-60 PSI 1 / 4" NPT
  • USD $932.62 /EACH
  • EACH
  • Qty avail.: 0
4.5" BRASS DUPLEX 0-600 PSI 1 / 4" NPT
  • USD $932.62 /EACH
  • EACH
  • Qty avail.: 0
4.5" BRASS DUPLEX 0 / 100 PSI 1 / 4"NPT BACK
  • USD $1,025.90 /EACH
  • EACH
  • Qty avail.: 0
4.5" BRASS DUPLEX 0 / 15 PSI 1 / 4" NPT BACK
  • USD $1,025.90 /EACH
  • EACH
  • Qty avail.: 0
4.5" BRASS DUPLEX 0 / 160 PSI 1 / 4"NPT BACK
  • USD $1,025.90 /EACH
  • EACH
  • Qty avail.: 0
4.5" BRASS DUPLEX 0 / 200 PSI 1 / 4"NPT BACK
  • USD $1,025.90 /EACH
  • EACH
  • Qty avail.: 0
4.5" BRASS DUPLEX 0 / 300 PSI 1 / 4"NPT BACK
  • USD $1,025.90 /EACH
  • EACH
  • Qty avail.: 0
4.5" BRASS DUPLEX 0 / 60 PSI 1 / 4" NPT BACK
  • USD $1,025.90 /EACH
  • EACH
  • Qty avail.: 0
4.5" SS DUPLEX 0 / 100 PSI 1 / 4" NPT BACK
  • USD $1,446.33 /EACH
  • EACH
  • Qty avail.: 0
4.5" SS DUPLEX 0 / 15 PSI 1 / 4" NPT BACK
  • USD $1,446.33 /EACH
  • EACH
  • Qty avail.: 0
4.5" SS DUPLEX 0 / 160 PSI 1 / 4" NPT BACK
  • USD $1,446.33 /EACH
  • EACH
  • Qty avail.: 0
4.5" SS DUPLEX 0 / 200 PSI 1 / 4" NPT BACK
  • USD $1,446.33 /EACH
  • EACH
  • Qty avail.: 1
4.5" SS DUPLEX 0 / 300 PSI 1 / 4" NPT BACK
  • USD $1,446.33 /EACH
  • EACH
  • Qty avail.: 0
4.5" SS DUPLEX 0 / 60 PSI 1 / 4" NPT BACK
  • USD $1,446.33 /EACH
  • Qty avail.: 0
4.5" SS DUPLEX 0 / 600 PSI 1 / 4" NPT BACK
  • USD $1,446.33 /EACH
  • EACH
  • Qty avail.: 0
4.5" ST / ST DUPLEX 0-100 PSI 1 / 4" NPT
  • USD $1,238.80 /EACH
  • EACH
  • Qty avail.: 0
4.5" ST / ST DUPLEX 0-15 PSI 1 / 4" NPT
  • USD $1,238.80 /EACH
  • EACH
  • Qty avail.: 0
