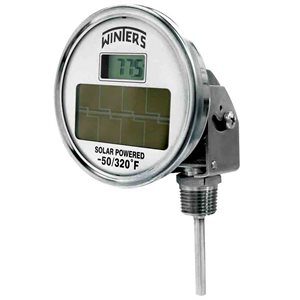

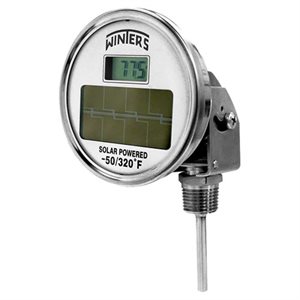

THS Solar Digital Bi-Metal Thermometer




APPLICATIONS:

  • Temperature sensing for heating, ventilation, air conditioning, food processing, waste water, industrial processes or compressors

DESCRIPTION & FEATURES:

  • A solar powered digital thermometer that provides a local temperature reading to 1/10 of a degree
  • 304 stainless steel case, stem and socket
  • Hermetically sealed thermometer case
  • Minimum required light 35 Lux
  • Ceramic resistance sensing element
  • 1/2” adjustable angle connection
  • 4” (100mm), 6” (150mm) and 9” (230mm) stem lengths
  • °F or °C scales available
  • ASME B40.200 compliant
  • RoHS compliant
  • 5 year warranty

DOCUMENTATION:

Dial 3” (75mm)
Case 304 SS
Lens Glass (3mm thickness)
Ring 304 SS, bezel, hermetically sealed
Display LCD
Stem

304 SS, 0.25” (6mm) diameter

2.5” (63mm) to 24” (600mm)
Connection 1/2” NPT fully adjustable
Sensor Ceramic resistance
Lux Rating 35 Lux
Ambient Temperature -4°F to 122°F (-20°C to 50°C)
Temperature Range -58°F to 320°F (-50°C to 160°C)
Read Interval Every 6 seconds
Accuracy ±1%
Enclosure Rating NEMA4 / IP68

  • Display Type
  • Results Per Page
  • Sort By
Solar Digital Bi-Metal Thermometer Metallic 15'' 304 SS 3'' -50 / 160 C 1 / 2'' NPT Var Angle 304 SS
  • USD $471.38 /EACH
  • EACH
  • Qty avail.: 0
Solar Digital Bi-Metal Thermometer Metallic 2.5'' 304 SS 3'' -50 / 160 C 1 / 2'' NPT Var Angle 304 SS
  • USD $396.05 /EACH
  • EACH
  • Qty avail.: 0
Solar Digital Bi-Metal Thermometer Metallic 2.5'' 304 SS 3'' -50 / 320 F 1 / 2'' NPT Var Angle 304 SS
  • USD $396.05 /EACH
  • Qty avail.: 0
Solar Digital Bi-Metal Thermometer Metallic 4'' 304 SS 3'' -50 / 320 F 1 / 2'' NPT Variable Angle 304 SS
  • USD $396.05 /EACH
  • EACH
  • Qty avail.: 0
Solar Digital Bi-Metal Thermometer Metallic 9'' 304 SS 3'' -50 / 160 C 1 / 2'' NPT Variable Angle 304 SS
  • USD $396.05 /EACH
  • EACH
  • Qty avail.: 0
