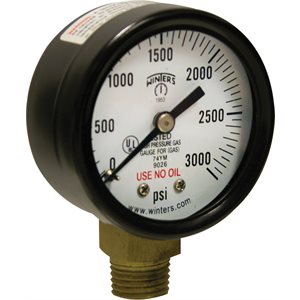

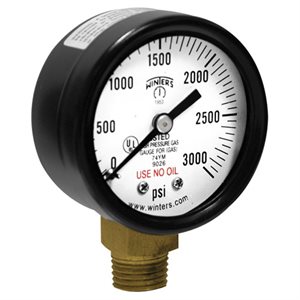

PCG Compressed Gas Gauge
APPLICATIONS:
- Beverage dispensing, regulators and tanks. Low pressures are used on the down stream side of a regulator. High pressures are used for measuring cylinder gas or tank pressures
DESCRIPTION & FEATURES:
- Economical 2” (50mm) gauge with built-in safety features
- Safety blowout back steel case
- ASME B40.100 compliant
- UL listed
- CRN registered
- 5 year warranty
DOCUMENTATION:
Case | Steel with blowout back, painted black |
Lens | Acrylic |
Ring | Steel, painted black |
Socket | Brass |
Connection | 1/8” NPT or 1/4” NPT, bottom or back |
Bourdon Tube | Brass |
Movement | Brass |
Pointer | Aluminum, painted black |
Over-Pressure Limit | 25% of full scale value |
Working Pressure | Maximum 75% of full scale value |
Ambient/Process Temperature | -40°F to 150°F (-40°C to 65°C) |
Accuracy | ±3-2-3% ANSI/ASME Grade B |
Enclosure Rating | IP52 |
Warning | Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
