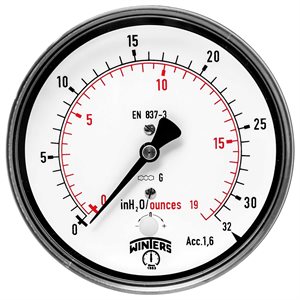

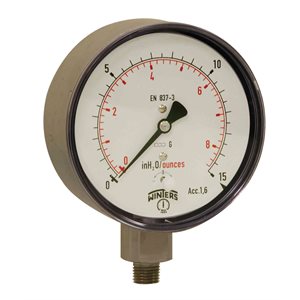

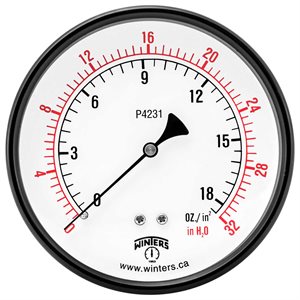

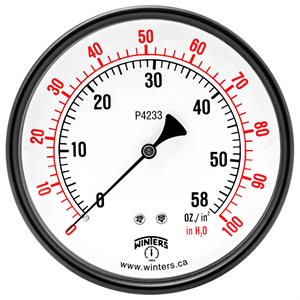

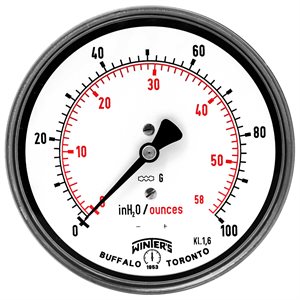

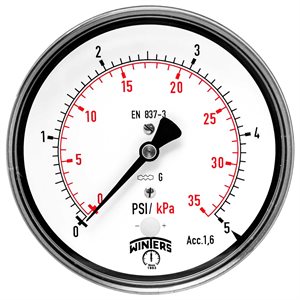

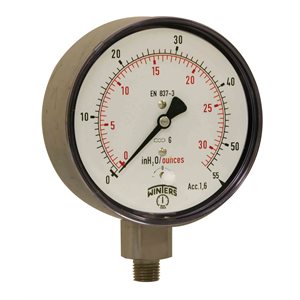

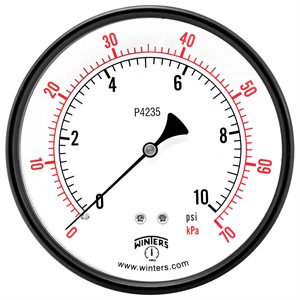

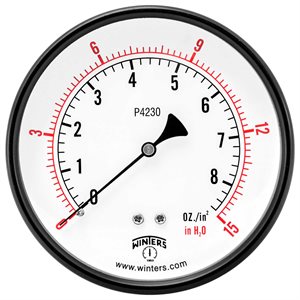

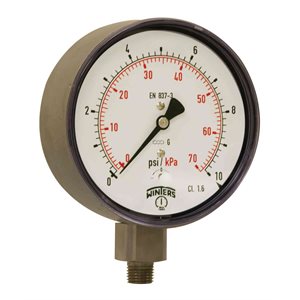

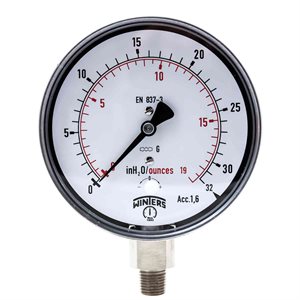

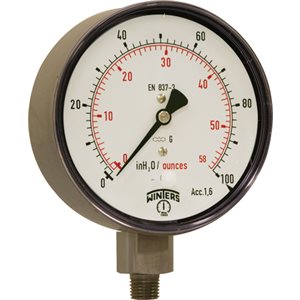

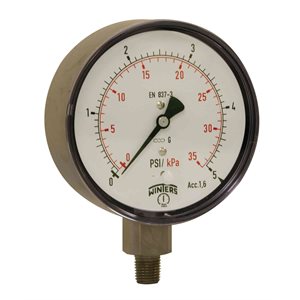

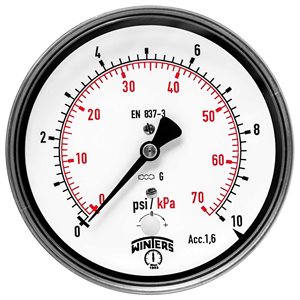

PLP Low Pressure Gauge
DownloadAPPLICATIONS:
- Suitable for measuring gaseous media both corrosive and non-corrosive
- Used to measure natural gas pressure as well air flow indication and leak detection
- Vacuum pumps, air compressors, air filters, gas burners, vacuum ovens, suction regulators and respirators
DESCRIPTION & FEATURES:
- Highly accurate reading of low pressures
- Brass or stainless steel wetted parts
- Ranges from 15” H2O/oz to +10 psi
- Over-pressure protection on some models (OP)
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
DOCUMENTATION:
| Stainless Steel Internals | Brass Internals | |
| Dial | 2.5” (63mm), 4” (100mm), 4.5” (115mm) and 6” (150mm), white aluminum with black and red markings | 2.5” (63mm), 4” (100mm), 4.5” (115mm) and 6” (150mm), white aluminum with black and red markings |
| Case | 2.5” (63mm), 4” (100mm): AISI 304 SS 4.5” (115mm), 6” (150mm): Aluminum, painted black | 2.5” (63mm), 4” (100mm): Steel, painted black 4.5” (115mm), 6” (150mm): Cast aluminum, painted black |
| Lens | 2.5” (63mm): Polycarbonate 4.5” (115mm), 6” (150mm): Glass | 2.5” (63mm), 4” (100mm): Polycarbonate 4.5” (115mm), 6” (150mm): Glass |
| Ring | 2.5” (63mm), 4” (100mm): Steel 4.5” (115mm), 6” (150mm): Aluminum | 2.5”(63mm), 4” (100mm): Steel 4.5” (115mm), 6” (150mm): Aluminum |
| Socket | AISI 316 SS | Brass |
| Connection | 1/4” NPT standard | 1/4” NPT standard |
| Diaphragm Element | AISI 316 SS | Phosphor bronze |
| Movement | AISI 316 SS | 2.5” (63mm): Engineering plastic upper and lower plate with brass pinion and sector; 4” (100mm), 4.5” (115mm), 6” (150mm): Brass |
| Pointer | Aluminum, anodized black | Aluminum, anodized black |
| Welding | TIG | Solder/brazed |
| Working Pressure | 75% of full scale value | 60% of full scale value (fluctuating) 75% of full scale value (static) |
| Over-pressure Limit | 30% of full scale value | 30% of full scale value, up to 200% with over-pressure protection (OP) option |
| Ambient/Process Temperature | -40°F to 150°F (-40°C to 65°C) | -40°F to 150°F (-40°C to 65°C) |
| Accuracy | ±1.6% of full scale | ±3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP52 | IP52 |
| Warning (brass internals only) | N/A |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
