PCT-LF Lead Free Contractor Gauge




APPLICATIONS:

  • Most commercial air, water and steam services that require a ±1% full-scale accuracy

DESCRIPTION & FEATURES:

  • Economical 4.5” (115mm) stainless steel case gauge
  • Brass or lead free brass wetted parts
  • ±1% accuracy
  • Zero adjustment screw
  • 1/4” NPT
  • Restricted orifice
  • ASME B40.100 compliant
  • CRN registered
  • 5 year warranty

DOCUMENTATION:

Case 304 SS
Lens Acrylic
Ring 304 SS
Socket

PCT: Brass

PCT-LF: Lead free brass

Connection 1/4” NPT standard
Bourdon Tube

Phosphor bronze

Movement Brass
Pointer Aluminum, anodized black, recalibrator screw
Welding Silver solder
Over-Pressure Limit

25% for pressures up to 1,450 psi (9,998 kPa),

15% for pressures over 1,500 psi (10,342 kPa)

Working Pressure Maximum 75% of full scale value
Ambient/Process Temperature -40°F to 200°F (-40°C to 93°C)
Accuracy ±1% ANSI/ASME Grade 1A
Enclosure Rating IP52
Warning Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov.

  • Display Type
  • Results per Page
  • Sort by

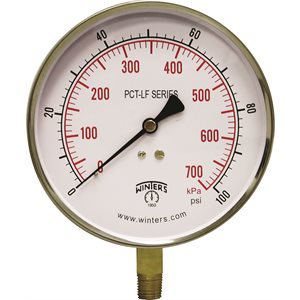

PCT-LF SERIES (LEAD-FREE) 4.5'' 0 / 100 PSI / KPA 1 / 4'' NPT LM
  • USD $38.57 /EACH
  • Retail Price USD $38.57 /EACH
  • EACH
  • Qty avail.: 10+

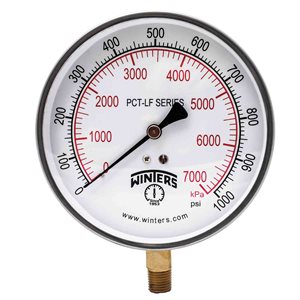

PCT-LF SERIES (LEAD-FREE) 4.5'' 0 / 1000 PSI / KPA 1 / 4'' NPT LM
  • USD $38.57 /EACH
  • Retail Price USD $38.57 /EACH
  • EACH
  • Qty avail.: 10+

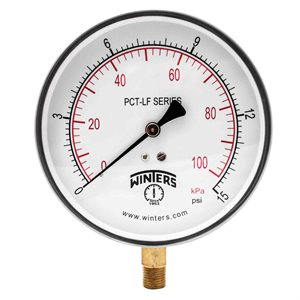

PCT-LF SERIES (LEAD-FREE) 4.5'' 0 / 15 PSI / KPA 1 / 4'' NPT LM
  • USD $38.57 /EACH
  • Retail Price USD $38.57 /EACH
  • EACH
  • Qty avail.: 10+

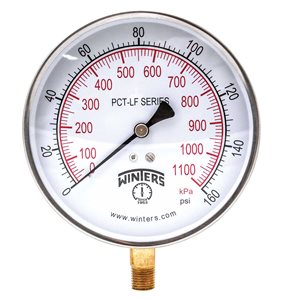

PCT-LF SERIES (LEAD-FREE) 4.5'' 0 / 160 PSI / KPA 1 / 4'' NPT LM
  • USD $38.57 /EACH
  • Retail Price USD $38.57 /EACH
  • EACH
  • Qty avail.: 10+

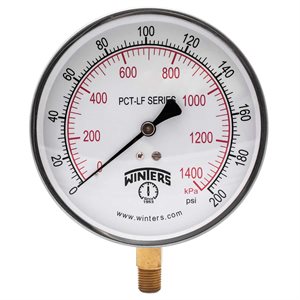

PCT-LF SERIES (LEAD-FREE) 4.5'' 0 / 200 PSI / KPA 1 / 4'' NPT LM
  • USD $38.57 /EACH
  • Retail Price USD $38.57 /EACH
  • EACH
  • Qty avail.: 10+

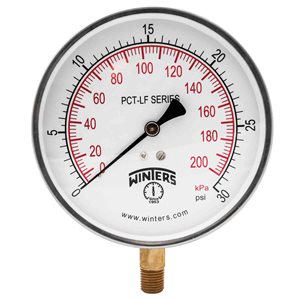

PCT-LF SERIES (LEAD-FREE) 4.5'' 0 / 30 PSI / KPA 1 / 4'' NPT LM
  • USD $38.57 /EACH
  • Retail Price USD $38.57 /EACH
  • EACH
  • Qty avail.: 10+

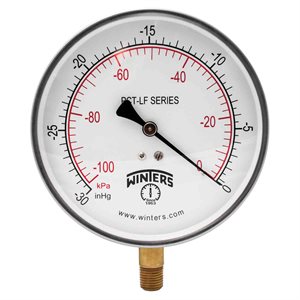

PCT-LF SERIES (LEAD-FREE) 4.5'' 0 / 30'' VAC / KPA 1 / 4'' NPT LM
  • USD $40.50 /EACH
  • Retail Price USD $40.50 /EACH
  • EACH
  • Qty avail.: 10+

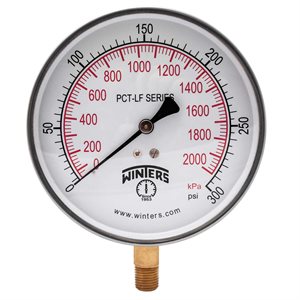

PCT-LF SERIES (LEAD-FREE) 4.5'' 0 / 300 PSI / KPA 1 / 4'' NPT LM
  • USD $38.57 /EACH
  • Retail Price USD $38.57 /EACH
  • EACH
  • Qty avail.: 10+
PCT-LF SERIES (LEAD-FREE) 4.5'' 0 / 3000 PSI / KPA 1 / 4'' NPT LM
  • USD $40.50 /EACH
  • Retail Price USD $40.50 /EACH
  • EACH
  • Qty avail.: 0

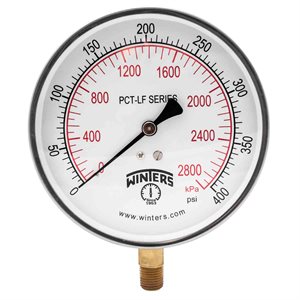

PCT-LF SERIES (LEAD-FREE) 4.5'' 0 / 400 PSI / KPA 1 / 4'' NPT LM
  • USD $38.57 /EACH
  • Retail Price USD $38.57 /EACH
  • EACH
  • Qty avail.: 0
PCT-LF SERIES (LEAD-FREE) 4.5'' 0 / 5000 PSI / KPA 1 / 4'' NPT LM
  • USD $40.50 /EACH
  • Retail Price USD $40.50 /EACH
  • EACH
  • Qty avail.: 0
PCT-LF SERIES (LEAD-FREE) 4.5'' 0 / 60 PSI / KPA 1 / 4'' NPT LM
  • USD $38.57 /EACH
  • Retail Price USD $38.57 /EACH
  • EACH
  • Qty avail.: 10

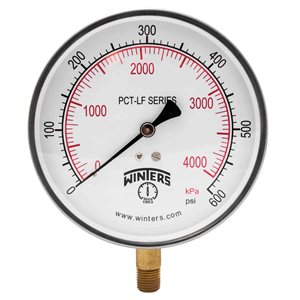

PCT-LF SERIES (LEAD-FREE) 4.5'' 0 / 600 PSI / KPA 1 / 4'' NPT LM
  • USD $38.57 /EACH
  • Retail Price USD $38.57 /EACH
  • EACH
  • Qty avail.: 10+
PCT-LF SERIES (LEAD-FREE) 4.5'' 30'' / 0 / 100 PSI / KPA 1 / 4'' NPT LM
  • USD $40.50 /EACH
  • Retail Price USD $40.50 /EACH
  • EACH
  • Qty avail.: 0

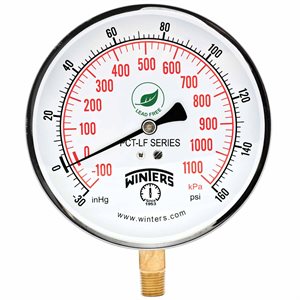

PCT-LF SERIES (LEAD-FREE) 4.5'' 30'' / 0 / 160 PSI / KPA 1 / 4'' NPT LM
  • USD $40.50 /EACH
  • Retail Price USD $40.50 /EACH
  • EACH
  • Qty avail.: 0
PCT-LF SERIES (LEAD-FREE) 4.5'' 30'' / 0 / 200 PSI / KPA 1 / 4'' NPT LM
  • USD $40.50 /EACH
  • Retail Price USD $40.50 /EACH
  • EACH
  • Qty avail.: 0
PCT-LF SERIES (LEAD-FREE) 4.5'' 30'' / 0 / 30 PSI / KPA 1 / 4'' NPT LM
  • USD $40.50 /EACH
  • Retail Price USD $40.50 /EACH
  • EACH
  • Qty avail.: 10+
PCT-LF SERIES (LEAD-FREE) 4.5'' 30'' / 0 / 300 PSI / KPA 1 / 4'' NPT LM
  • USD $40.50 /EACH
  • Retail Price USD $40.50 /EACH
  • EACH
  • Qty avail.: 2
PCT-LF SERIES (LEAD-FREE) 4.5'' 30'' / 0 / 60 PSI / KPA 1 / 4'' NPT LM
  • USD $40.50 /EACH
  • Retail Price USD $40.50 /EACH
  • EACH
  • Qty avail.: 10+
