P9U 90 Series Panel Mounted Gauge




APPLICATIONS:

  • Panels, compressor equipment, water and oil pumps, where rapid pressure fluctuations or system vibration require a stable pointer

DESCRIPTION & FEATURES:

  • General purpose panel mounted gauge with 1.5” (40mm) to 3.5” (90mm) dial sizes
  • Flutterless pointer
  • Dampened movement
  • Removable lens
  • Zero-adjustment
  • ±2-1-2% accuracy
  • ASME B40.100 compliant
  • CRN registered
  • 5 year warranty

DOCUMENTATION:

Dial 1.5” (40mm), 2” (50mm), 2.5” (63mm), 3.5” (90mm), white aluminum with black and red markings
Case Steel, painted black
Lens Acrylic, threaded
Socket Brass
Connection 1/8” NPT or 1/4” NPT standard
Bourdon Tube Phosphor bronze
Movement Brass (flutterless movement)
Pointer Aluminum, black
Welding Silver alloy
Over-Pressure Limit 25% of full scale value
Working Pressure Maximum 75% of full scale value
Ambient/Process Temperature -40°F to 150°F (-40°C to 65°C)
Accuracy ±2-1-2% ANSI/ASME Grade A
Enclosure Rating IP52
Warning Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov.

  • Display Type
  • Results per Page
  • Sort by
90 SERIES PANEL MOUNTED GAUGE STEEL 1.5'' 0-100 PSI / KPA 1 / 8'' NPT CBM BR SOCKET
  • USD $33.69 /EACH
  • Retail Price USD $33.69 /EACH
  • EACH
  • Qty avail.: 10+
90 SERIES PANEL MOUNTED GAUGE STEEL 1.5'' 0-15 PSI / KPA 1 / 8'' NPT CBM BR SOCKET
  • USD $33.69 /EACH
  • Retail Price USD $33.69 /EACH
  • EACH
  • Qty avail.: 10+

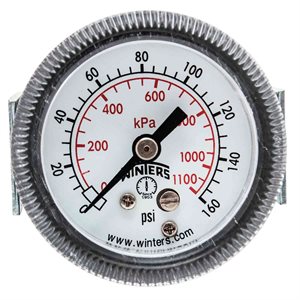

90 SERIES PANEL MOUNTED GAUGE STEEL 1.5'' 0-160 PSI / KPA 1 / 8'' NPT CBM BR SOCKET
  • USD $33.69 /EACH
  • Retail Price USD $33.69 /EACH
  • EACH
  • Qty avail.: 0
90 SERIES PANEL MOUNTED GAUGE STEEL 1.5'' 0-200 PSI / KPA 1 / 8'' NPT CBM BR SOCKET
  • USD $33.69 /EACH
  • Retail Price USD $33.69 /EACH
  • EACH
  • Qty avail.: 0
90 SERIES PANEL MOUNTED GAUGE STEEL 1.5'' 0-30 PSI / KPA 1 / 8'' NPT CBM BR SOCKET
  • USD $33.69 /EACH
  • Retail Price USD $33.69 /EACH
  • EACH
  • Qty avail.: 10+

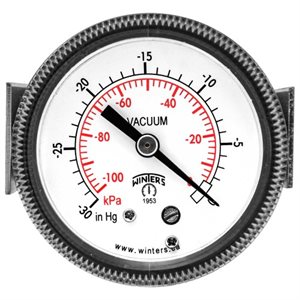

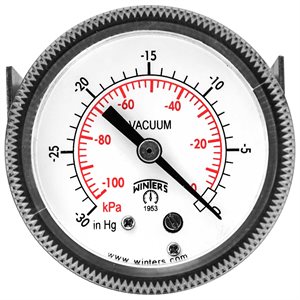

90 SERIES PANEL MOUNTED GAUGE STEEL 1.5'' 0-30'' VAC / KPA 1 / 8'' NPT CBM BR SOCKET
  • USD $35.38 /EACH
  • Retail Price USD $35.38 /EACH
  • EACH
  • Qty avail.: 7
90 SERIES PANEL MOUNTED GAUGE STEEL 1.5'' 0-300 PSI / KPA 1 / 8'' NPT CBM BR SOCKET
  • USD $33.69 /EACH
  • Retail Price USD $33.69 /EACH
  • EACH
  • Qty avail.: 1

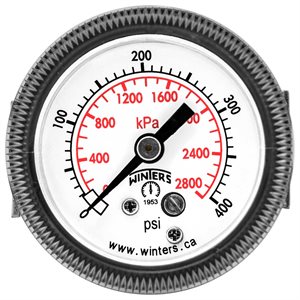

90 SERIES PANEL MOUNTED GAUGE STEEL 1.5'' 0-400 PSI / KPA 1 / 8'' NPT CBM BR SOCKET
  • USD $33.69 /EACH
  • Retail Price USD $33.69 /EACH
  • EACH
  • Qty avail.: 10+
90 SERIES PANEL MOUNTED GAUGE STEEL 1.5'' 0-60 PSI / KPA 1 / 8'' NPT CBM BR SOCKET
  • USD $33.69 /EACH
  • Retail Price USD $33.69 /EACH
  • EACH
  • Qty avail.: 10+

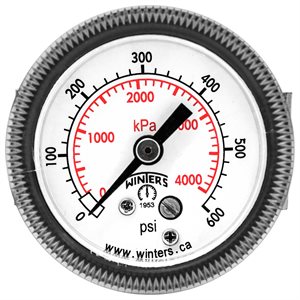

90 SERIES PANEL MOUNTED GAUGE STEEL 1.5'' 0-600 PSI / KPA 1 / 8'' NPT CBM BR SOCKET
  • USD $33.69 /EACH
  • Retail Price USD $33.69 /EACH
  • EACH
  • Qty avail.: 6

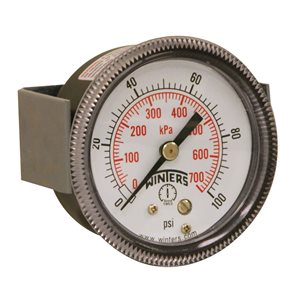

90 SERIES PANEL MOUNTED GAUGE STEEL 2'' 0-100 PSI / KPA 1 / 4'' NPT CBM BR SOCKET
  • USD $34.07 /EACH
  • Retail Price USD $34.07 /EACH
  • EACH
  • Qty avail.: 1
90 SERIES PANEL MOUNTED GAUGE STEEL 2'' 0-100 PSI / KPA 1 / 8'' NPT CBM BR SOCKET
  • USD $34.07 /EACH
  • Retail Price USD $34.07 /EACH
  • EACH
  • Qty avail.: 10+
90 SERIES PANEL MOUNTED GAUGE STEEL 2'' 0-15 PSI / KPA 1 / 4'' NPT CBM BR SOCKET
  • USD $34.07 /EACH
  • Retail Price USD $34.07 /EACH
  • EACH
  • Qty avail.: 0
90 SERIES PANEL MOUNTED GAUGE STEEL 2'' 0-15 PSI / KPA 1 / 8'' NPT CBM BR SOCKET
  • USD $34.07 /EACH
  • Retail Price USD $34.07 /EACH
  • EACH
  • Qty avail.: 6

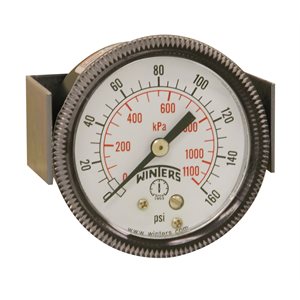

90 SERIES PANEL MOUNTED GAUGE STEEL 2'' 0-160 PSI / KPA 1 / 4'' NPT CBM BR SOCKET
  • USD $34.07 /EACH
  • Retail Price USD $34.07 /EACH
  • EACH
  • Qty avail.: 2
90 SERIES PANEL MOUNTED GAUGE STEEL 2'' 0-160 PSI / KPA 1 / 8'' NPT CBM BR SOCKET
  • USD $34.07 /EACH
  • Retail Price USD $34.07 /EACH
  • EACH
  • Qty avail.: 10+

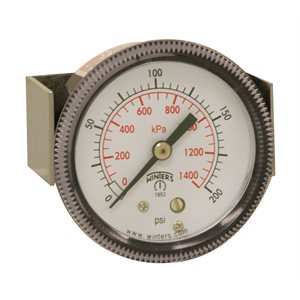

90 SERIES PANEL MOUNTED GAUGE STEEL 2'' 0-200 PSI / KPA 1 / 4'' NPT CBM BR SOCKET
  • USD $34.07 /EACH
  • Retail Price USD $34.07 /EACH
  • EACH
  • Qty avail.: 0
90 SERIES PANEL MOUNTED GAUGE STEEL 2'' 0-200 PSI / KPA 1 / 8'' NPT CBM BR SOCKET
  • USD $34.07 /EACH
  • Retail Price USD $34.07 /EACH
  • EACH
  • Qty avail.: 10+

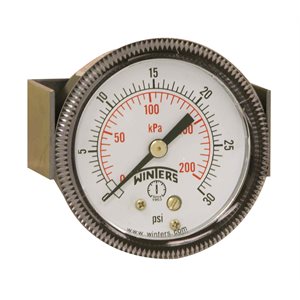

90 SERIES PANEL MOUNTED GAUGE STEEL 2'' 0-30 PSI / KPA 1 / 4'' NPT CBM BR SOCKET
  • USD $34.07 /EACH
  • Retail Price USD $34.07 /EACH
  • EACH
  • Qty avail.: 10+
90 SERIES PANEL MOUNTED GAUGE STEEL 2'' 0-30 PSI / KPA 1 / 8'' NPT CBM BR SOCKET
  • USD $34.07 /EACH
  • Retail Price USD $34.07 /EACH
  • EACH
  • Qty avail.: 10+
90 SERIES PANEL MOUNTED GAUGE STEEL 2'' 0-30'' VAC / KPA 1 / 4'' NPT CBM BR SOCKET
  • USD $35.78 /EACH
  • Retail Price USD $35.78 /EACH
  • EACH
  • Qty avail.: 1
90 SERIES PANEL MOUNTED GAUGE STEEL 2'' 0-30'' VAC / KPA 1 / 8'' NPT CBM BR SOCKET
  • USD $35.78 /EACH
  • Retail Price USD $35.78 /EACH
  • EACH
  • Qty avail.: 0

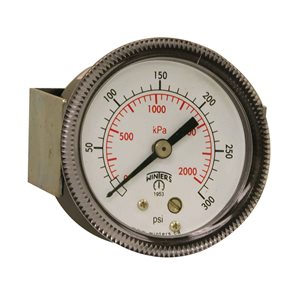

90 SERIES PANEL MOUNTED GAUGE STEEL 2'' 0-300 PSI / KPA 1 / 4'' NPT CBM BR SOCKET
  • USD $34.07 /EACH
  • Retail Price USD $34.07 /EACH
  • EACH
  • Qty avail.: 0
90 SERIES PANEL MOUNTED GAUGE STEEL 2'' 0-300 PSI / KPA 1 / 8'' NPT CBM BR SOCKET
  • USD $34.07 /EACH
  • Retail Price USD $34.07 /EACH
  • EACH
  • Qty avail.: 5
