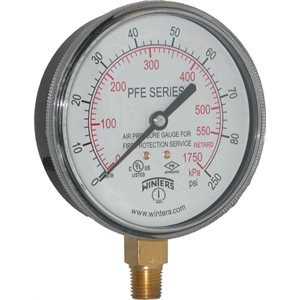

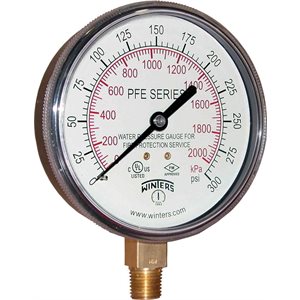

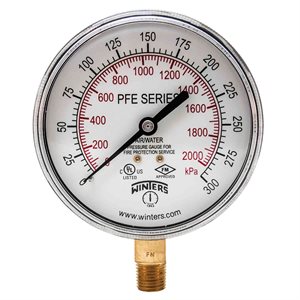

PFE Sprinkler Gauge




  • Ideally suited for fire sprinkler systems and fire fighting equipment


  • Specially designed for fire sprinkler systems
  • Suitable for air and water media
  • Corrosion resistant case
  • Dual scale (psi/kPa, psi/bar, psi/kg/cm2) and single scale (psi) pressure ratings
  • Approved by Factory Mutual (FM) and listed by Underwriter Laboratory (UL-393), USA and Canada
  • Internal pointer travel over-stop
  • ASME B40.100 compliant
  • CRN registered
  • 5 year warranty


 Case Black plastic
 Lens Polycarbonate, threaded
 Socket Brass
 Connection 1/4″ NPT standard, bottom
 Bourdon Tube Phosphor bronze
 Movement Brass
 Pointer Aluminum, black
 Welding Silver Alloy
 Working Pressure Maximum 75% of full scale value
 Ambient/Process Temperature -40°F to 150°F  (-40°C to 65°C)
 Accuracy 3-2-3% ASME Grade B
Enclosure Rating IP52
Warning Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information go to
