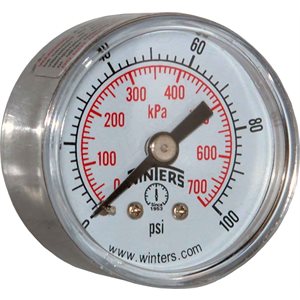

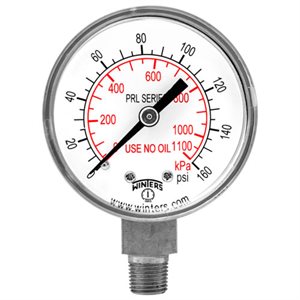

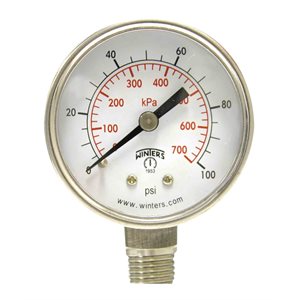

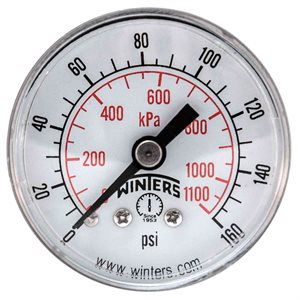

PRL Regulator Gauge
DownloadAPPLICATIONS:
- Regulators, valve positioners and actuators that require a reliable and corrosion-resistant pressure gauge
DESCRIPTION & FEATURES:
- Small diameter, all stainless steel gauge
- 1.5” (40mm) and 2” (50mm) dials
- Full view snap-in lens
- Back and bottom connection
- ASME B40.100 compliant
- RoHS compliant
- CRN registered
- 5 year warranty
DOCUMENTATION:
| Case | 304 SS |
| Lens | Acrylic, snap-in type |
| Socket | 316 SS |
| Connection | 1/8” NPT or 1/4” NPT standard |
| Bourdon Tube | 316 SS |
| Movement | 304 SS |
| Pointer | Aluminum, painted black |
| Welding | Silver alloy |
| Over-Pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40°F to 150°F (-40°C to 65°C) |
| Accuracy | ±2.5% of full scale |
| Enclosure Rating | IP52 |
