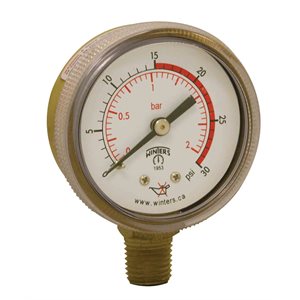

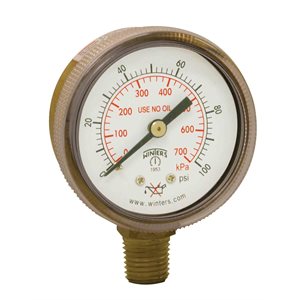

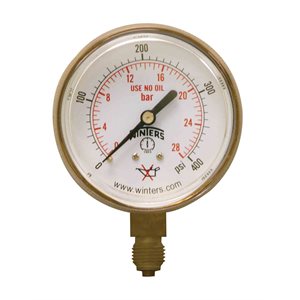

PWL Welding Gauge





APPLICATIONS:

  • Welding tank regulators or manifolds, beverage dispensing regulators and other pressurized tanks
  • Used on the down stream side of a regulator and high pressure of cylinder gases

DESCRIPTION & FEATURES:

  • Economical, non-sparking brass case gauge
  • 1.5” (40mm), 2” (50mm) and 2.5” (63mm) brass case
  • “USE NO OIL” on dial
  • Brass socket
  • Threaded-on polycarbonate lens
  • ASME B40.100 compliant
  • CRN registered
  • 5 year warranty

DOCUMENTATION:

Case Brass, polished
Lens Polycarbonate, threaded
Socket Brass
Connection

1.5″ (40mm): 1/8″ NPT bottom,

2″ (50mm), 2.5″ (63mm): 1/4” NPT bottom

Bourdon Tube Phosphor bronze
Movement Brass
Pointer Aluminum, painted black
Welding Silver alloy
Over-pressure Limit 25% of full scale value
Working Pressure Maximum  75% of full scale value
Ambient/Process Temperature -40°F to 150°F (-40°C to 65°C)
Accuracy ±3-2-3% ANSI/ASME Grade B
Enclosure Rating IP52
Warning Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov.

  • Display Type
  • Results Per Page
  • Sort By
PWL SERIES 1.5" 0-100 PSI / KPA 1 / 8" BTM
  • USD $42.38 /EACH
  • EACH
  • Qty avail.: 0
PWL SERIES 1.5" 0-200 PSI / KPA 1 / 8" BTM
  • USD $42.38 /EACH
  • EACH
  • Qty avail.: 0
PWL SERIES 1.5" 0-30 PSI / KPA 1 / 8" BTM
  • USD $42.38 /EACH
  • EACH
  • Qty avail.: 0
PWL SERIES 1.5" 0-4,000 PSI / KPA 1 / 8" BTM
  • USD $46.64 /EACH
  • EACH
  • Qty avail.: 0
PWL SERIES 1.5" 0-400 PSI / KPA 1 / 8" BTM
  • USD $42.38 /EACH
  • EACH
  • Qty avail.: 0
PWL SERIES 1.5" 0-60 PSI / KPA 1 / 8" BTM
  • USD $42.38 /EACH
  • EACH
  • Qty avail.: 0
PWL SERIES 1.5" 0-600 PSI / KPA 1 / 8" BTM
  • USD $42.38 /EACH
  • EACH
  • Qty avail.: 10+
WELDING GAUGE 2" 0-100 PSI / KPA 1 / 4" BTM
  • USD $42.38 /EACH
  • EACH
  • Qty avail.: 9
WELDING GAUGE 2" 0-160 PSI / KPA 1 / 4" BTM
  • USD $42.38 /EACH
  • EACH
  • Qty avail.: 10+
WELDING GAUGE 2" 0-200 PSI / KPA 1 / 4" BTM
  • USD $42.38 /EACH
  • EACH
  • Qty avail.: 10+
WELDING GAUGE 2" 0-3,000 PSI / KPA 1 / 4" BTM
  • USD $43.48 /EACH
  • EACH
  • Qty avail.: 0
WELDING GAUGE 2" 0-30 PSI / KPA 1 / 4" BTM
  • USD $42.38 /EACH
  • EACH
  • Qty avail.: 10+
WELDING GAUGE 2" 0-400 PSI / KPA 1 / 4" BTM
  • USD $42.38 /EACH
  • EACH
  • Qty avail.: 10+
WELDING GAUGE 2" 0-4000 PSI / KPA 1 / 4 BTM
  • USD $43.48 /EACH
  • EACH
  • Qty avail.: 10+
WELDING GAUGE 2" 0-60 PSI / KPA 1 / 4" BTM
  • USD $42.38 /EACH
  • EACH
  • Qty avail.: 10+
WELDING GAUGE 2" 0-600 PSI / KPA 1 / 4" BTM
  • USD $42.38 /EACH
  • EACH
  • Qty avail.: 0
WELDING GAUGE 2.5" 0-100 PSI / KPA 1 / 4 BTM
  • USD $42.38 /EACH
  • EACH
  • Qty avail.: 4
WELDING GAUGE 2.5" 0-200 PSI / KPA 1 / 4 BTM
  • USD $42.38 /EACH
  • EACH
  • Qty avail.: 0
WELDING GAUGE 2.5" 0-30 PSI / KPA 1 / 4" BTM
  • USD $42.38 /EACH
  • EACH
  • Qty avail.: 0
WELDING GAUGE 2.5" 0-400 PSI / KPA 1 / 4 BTM
  • USD $42.38 /EACH
  • EACH
  • Qty avail.: 0
WELDING GAUGE 2.5" 0-4000 PSI / KPA 1 / 4BTM
  • USD $43.48 /EACH
  • EACH
  • Qty avail.: 6
WELDING GAUGE 2.5" 0-60 PSI / KPA 1 / 4" BTM
  • USD $42.38 /EACH
  • EACH
  • Qty avail.: 0
