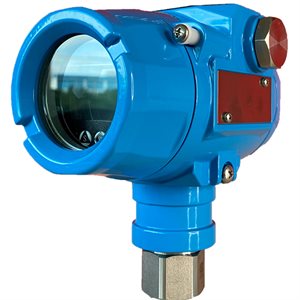

- WinSMART™ LY16 SMART Explosion Proof Pressure Transmitter
WinSMART™ LY16 SMART Explosion Proof Pressure Transmitter
APPLICATIONS:
-
- Pressure monitoring for oil and gas, well head process control, petrochemical installations, power generation equipment and all hazardous locations
DESCRIPTION & FEATURES:
-
-
- Microprocessor-based high performing transmitter
- Explosion proof smart pressure transmitter for hazardous locations
- Built-in temperature sensor
- 0.2% or 0.5% accuracy
- Simple to operate 3-push button control
- HART® or Modbus communications available
- Low power option available
- Re-zero function for safe field calibration
- 10:1 rangeability allows for installation in any application
- CRN Pending
- 5 year warranty
-
DOCUMENTATION:
| Output Signal | 4/20 mA, 2-wire / V = 10.5-55 Vdc 4/20 mA + HART, 2-wire / V = 16.5-55 Vdc 1/5 Vdc, 3-wire / V = 10.5-55 Vdc Modbus, 4-wire / V = 9-30 Vdc |
| LCD Display | LCD display (standard) or without LCD display (optional) |
| Accuracy | 0.2% URL standard, 0.5% optional |
| Stability | 0.1% per year |
| Temperature Range | Working: -40/85°C (with display -20/70°C), -40/185°F (with display -4/158°F) Storage: -40/110°C (with display -40/85°C), -40/230°F (with display -40/185°F) Media: silicone oil filling: -40/120°C (-40/248°F) |
| Working Humidity | 5-100% at 40°C (104°F) |
| Pressure Connection | 1/4” or 1/2” NPTM or F, 1/4” or 1/2” GM (large 10mm orifice) |
| Housing | Rugged die-cast aluminum housing, painted blue |
| Wetted Parts | 316L SS |
| Overload Pressure | 1.5 x rated pressure |
| Power Consumption | </- 500 mW @ 24 VDC, 20.8 mA |
| Vibration | 20g, 20Hz…5kHz According to GB/T 1827.3 / IEC 61298-3 tests, <0.1% URL |
| Shock | 20g, 20Hz…5kHz |
| Available Pressure Units | kPa, Mpa, bar, psi, mmHg, mmH2O, mH2O, inH2O, ftH2O, inHg, mHg, TORR, mbar, g/cm2, kg/cm2, Pa, ATM |
| Available Temperature Units | Celsius, Fahrenheit |
| Protection Class | EMI, ESD, RFI, reverse polarity protected |
| Approvals | CSA, for USA & Canada • Class I, Division 1, Group A,B,C and D T6 | Class II, Division 1 Group E, F and G T80oC | Class III Intertek, for USA & Canada • Class I, Zone 0 A Ex ia IIC T6 Gb | Class I, Division 1, Group A-D, T6 | – 40oC to 60oC |
| Protection Class | IP66 / IP67 |
| Weight | 2.9 lbs (1.3 kg) |
| Operational Life | 100 million cycles |
