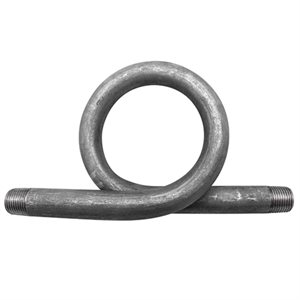

SSP Syphon
DownloadAPPLICATIONS:
- Recommended for applications involving temperatures above 100°F (37°C)
DESCRIPTION & FEATURES:
- On steam service, the syphon will prevent hot steam from entering a pressure gauge, diaphragm seal or transmitter
- Available in brass/steel for non-corrosive applications and stainless steel for corrosive applications
- RoHS compliant (304 SS and 316 SS syphons only)
- CRN registered
- 5 year warranty
DOCUMENTATION:
| Material | Schedule 40 seamless: Carbon steel coil, brass, 304 SS, 316 SS Schedule 80, 160 seamless: Carbon steel coil, 304 SS, 316 SS |
| Style | 180° coil |
| Connection | 1/4” NPT male x 1/4” NPT male 1/2” NPT male x 1/2” NPT male |
| Maximum Operating Pressure | Schedule 40 seamless: Brass, carbon steel, 304 SS, 316 SS suitable up to 500 psi at 680°F (360°C) Schedule 80 seamless: Carbon steel, 304 SS, 316 SS suitable up to 1,650 psi at 630°F (332°C) Schedule 160 seamless: Carbon steel, 304 SS, 316 SS suitable up to 3,200 psi at 1,100°F (593°C) |
| Warning (brass syphons only) |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
