PTG Test Gauge




APPLICATIONS:

  • Designed to be used where accuracy and repeatability are of prime importance
  • Used in laboratories and instrument testing facilities

DESCRIPTION & FEATURES:

  • Highly accurate ±0.5% complete with calibration certificate traceable to NIST standards
  • Mirrored anti-parallax dial
  • Knife-edge pointer
  • Protective carrying and storage case available
  • ASME B40.100 compliant
  • CRN registered
  • 5 year warranty

DOCUMENTATION:

Dial White aluminum with black markings and mirror band for precise instrument readings
Case AISI 304 SS
Lens

4″ (100mm): Polycarbonate

6″ (150mm): Glass

Ring AISI 304 SS
Socket Brass
Connection 1/4” NPT or 1/2” NPT standard, bottom
Bourdon Tube Phosphor bronze
Movement Brass
Pointer Aluminum, anodized black, micrometer adjustable, knife-edge
Welding Silver alloy
Over-Pressure Limit 30% of full scale value
Working Pressure Maximum 75% of full scale value
Calibration Conditions 68°F (±5.4°F), 20°C (±3°C) for ambient and process temperatures at atmospheric pressure
Ambient/Process Temperature -4°F to 150°F (-20°C to 65°C)
Accuracy ±0.5% ANSI/ASME Grade 2A
Enclosure Rating IP65
Warning Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov.

  • Display Type
  • Results per Page
  • Sort by

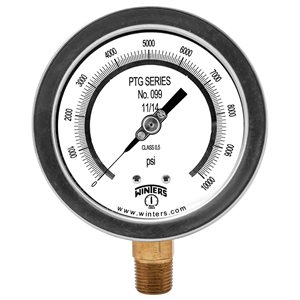

4" TEST GAUGE 0-10,000 PSI 1 / 2" NPT BTTM
  • USD $722.45 /EACH
  • Retail Price USD $722.45 /EACH
  • EACH
  • Qty avail.: 0

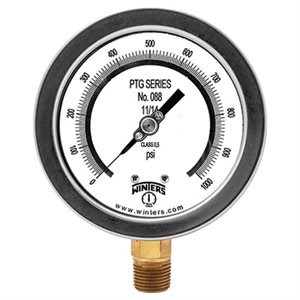

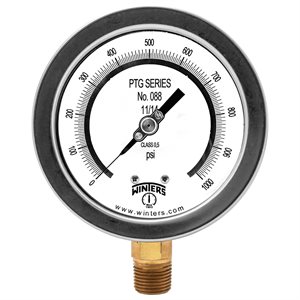

4" TEST GAUGE 0-1000 PSI 1 / 2" NPT BTTM
  • USD $656.77 /EACH
  • Retail Price USD $656.77 /EACH
  • EACH
  • Qty avail.: 2

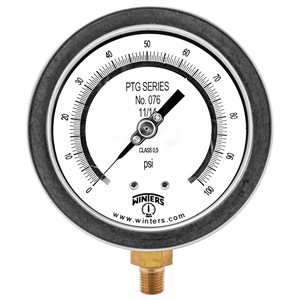

4" TEST GAUGE 0-100PSI 1 / 4" NPT BTM
  • USD $656.77 /EACH
  • Retail Price USD $656.77 /EACH
  • EACH
  • Qty avail.: 0
4" TEST GAUGE 0-1500 PSI 1 / 2" NPT BTTM
  • USD $722.45 /EACH
  • Retail Price USD $722.45 /EACH
  • EACH
  • Qty avail.: 2
4" TEST GAUGE 0-15PSI 1 / 4" NPT BTM
  • USD $656.77 /EACH
  • Retail Price USD $656.77 /EACH
  • EACH
  • Qty avail.: 1

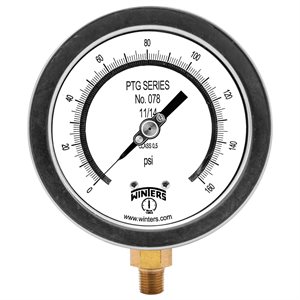

4" TEST GAUGE 0-160PSI 1 / 4"NPT BTM
  • USD $656.77 /EACH
  • Retail Price USD $656.77 /EACH
  • EACH
  • Qty avail.: 0

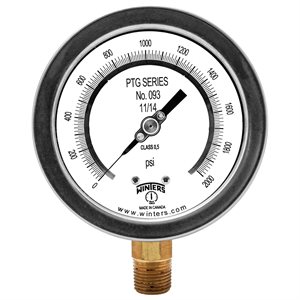

4" TEST GAUGE 0-2000 PSI 1 / 2" NPT BTTM
  • USD $722.45 /EACH
  • Retail Price USD $722.45 /EACH
  • EACH
  • Qty avail.: 2

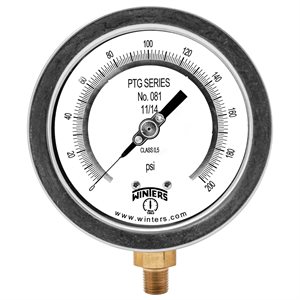

4" TEST GAUGE 0-200PSI 1 / 4"NPT BTM
  • USD $656.77 /EACH
  • Retail Price USD $656.77 /EACH
  • EACH
  • Qty avail.: 1

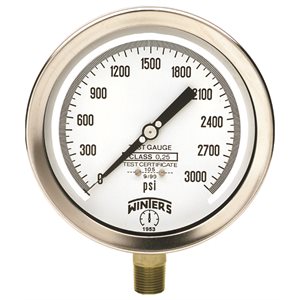

4" TEST GAUGE 0-3000 PSI 1 / 2" NPT BTTM
  • USD $722.45 /EACH
  • Retail Price USD $722.45 /EACH
  • EACH
  • Qty avail.: 2
4" TEST GAUGE 0-300PSI 1 / 4"NPT BTM
  • USD $656.77 /EACH
  • Retail Price USD $656.77 /EACH
  • EACH
  • Qty avail.: 0

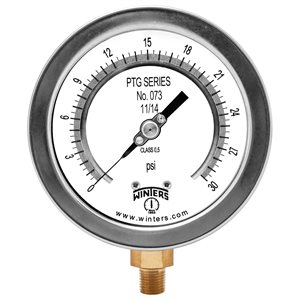

4" TEST GAUGE 0-30PSI 1 / 4"NPT BTM
  • USD $656.77 /EACH
  • Retail Price USD $656.77 /EACH
  • EACH
  • Qty avail.: 0
4" TEST GAUGE 0-400PSI 1 / 4" NPT BTM
  • USD $656.77 /EACH
  • Retail Price USD $656.77 /EACH
  • EACH
  • Qty avail.: 0
4" TEST GAUGE 0-5000 PSI 1 / 2" NPT BTM
  • USD $722.45 /EACH
  • Retail Price USD $722.45 /EACH
  • EACH
  • Qty avail.: 2

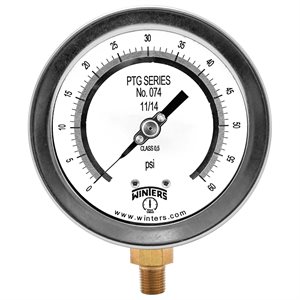

4" TEST GAUGE 0-60 PSI ONLY 1 / 4" NPT BTM
  • USD $656.77 /EACH
  • Retail Price USD $656.77 /EACH
  • EACH
  • Qty avail.: 2
4" TEST GAUGE 0 / 30" VAC 1 / 4" NPT BOTTOM
  • USD $722.45 /EACH
  • Retail Price USD $722.45 /EACH
  • EACH
  • Qty avail.: 0
REPLACED WITH PTG6000
  • Contact us for pricing

  • Qty avail.: 0
REPLACED WITH PTG6001
  • Contact us for pricing

  • Qty avail.: 0
REPLACED WITH PTG6002
  • Contact us for pricing

  • Qty avail.: 0
REPLACED WITH PTG6003
  • Contact us for pricing

  • Qty avail.: 1
REPLACED WITH PTG6004
  • Contact us for pricing

  • Qty avail.: 0
REPLACED WITH PTG6005
  • Contact us for pricing

  • Qty avail.: 0
REPLACED WITH PTG6006
  • Contact us for pricing

  • Qty avail.: 0
REPLACED WITH PTG6007
  • Contact us for pricing

  • Qty avail.: 0
REPLACED WITH PTG6008
  • Contact us for pricing

  • Qty avail.: 0
