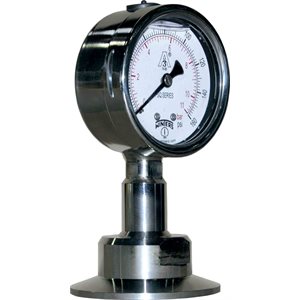

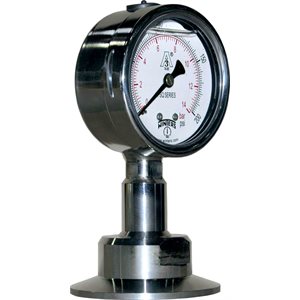

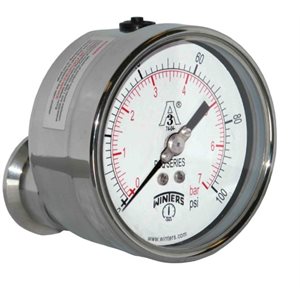

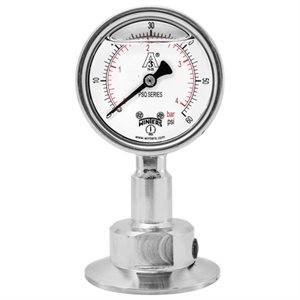

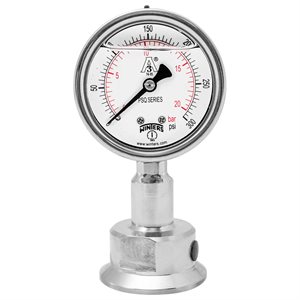

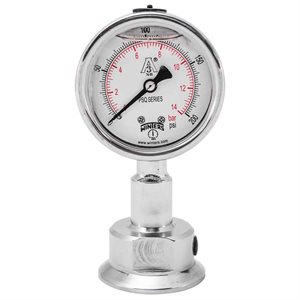

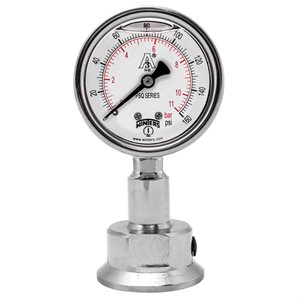

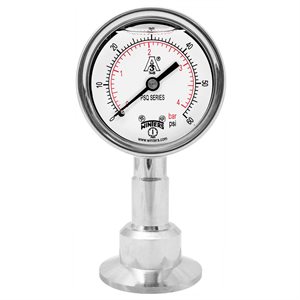

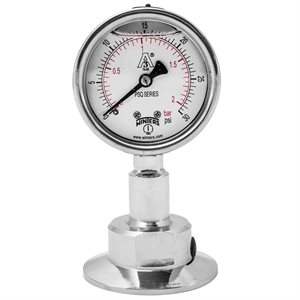

PSQ 3A All-Purpose Quality Sanitary Gauge




APPLICATIONS:

  • Built to withstand all sanitary applications where 3A approval is required including food, beverage and dairy installations

DESCRIPTION & FEATURES:

  • Quality series for all sanitary gauge systems
  • Food grade glycerin filling standard
  • Electro-polish finish
  • Industrial grade polycarbonate lens standard
  • Clean-In-Place and steam-in-place design
  • 0.75”, 1.5” and 2” Tri-Clamp® connections bottom and back
  • ASME B40.100 compliant
  • CRN Registered
  • 5 year warranty

DOCUMENTATION:

Case  304 SS, polished
Bezel  304 SS, polished
Lens   Polycarbonate
Connection   0.75″, 1.5″ or 2″ Tri-Clamp®
Over Pressure Limit

 25% up to 600 psi (41 bar),

15% over 600 psi (41 bar)

CIP Temperature Limit  250°F (121°C) continuous
SIP Temperature Limit  266°F (130°C) 1 hour, dry
Bourdon Tube  316 SS
Socket  316 SS
Movement  304 SS
Enclosure Rating  IP65/NEMA 4X
System Fill  Food grade glycerin standard (Mineral oil, silicone and Neobee-20 optional)
Case Fill  Food grade glycerin standard (Dry, mineral oil, silicone and Neobee-20 optional)
Re-zero Feature  Adjustable micrometer pointer (4″ dial only)
Wetted Parts  316L SS, Ra=8 microinches
Ambient Temperature  Glycerin filled: 40°F to 150°F (4°C to 65°C)
Process Temperature  0°F to 250°F (-18°C to 121°C)
Accuracy

 2.5″ (63mm): ±1.5% of full scale

4″ (100mm): ±1.0% of full scale

Agency Compliance  3A standard 74-06

  • Display Type
  • Results per Page
  • Sort by
PSQ SANITARY 2.5'' 0 / 100 PSI / BAR 1.5'' TRI-CLAMP CBM 3A
  • USD $506.76 /EACH
  • Retail Price USD $506.76 /EACH
  • EACH
  • Qty avail.: 0
PSQ SANITARY 2.5'' 0 / 100 PSI / BAR 1.5'' TRI-CLAMP LM 3A
  • USD $482.63 /EACH
  • Retail Price USD $482.63 /EACH
  • EACH
  • Qty avail.: 9
PSQ SANITARY 2.5'' 0 / 100 PSI / BAR 2'' TRI-CLAMP CBM 3A
  • USD $537.81 /EACH
  • Retail Price USD $537.81 /EACH
  • EACH
  • Qty avail.: 0
PSQ SANITARY 2.5'' 0 / 100 PSI / BAR 2'' TRI-CLAMP LM 3A
  • USD $512.20 /EACH
  • Retail Price USD $512.20 /EACH
  • EACH
  • Qty avail.: 0
PSQ SANITARY 2.5'' 0 / 1000 PSI / BAR 1.5'' TRI-CLAMP CBM 3A
  • USD $506.76 /EACH
  • Retail Price USD $506.76 /EACH
  • EACH
  • Qty avail.: 0
PSQ SANITARY 2.5'' 0 / 1000 PSI / BAR 1.5'' TRI-CLAMP LM 3A
  • USD $482.63 /EACH
  • Retail Price USD $482.63 /EACH
  • EACH
  • Qty avail.: 0
PSQ SANITARY 2.5'' 0 / 1000 PSI / BAR 2'' TRI-CLAMP CBM 3A
  • USD $537.81 /EACH
  • Retail Price USD $537.81 /EACH
  • EACH
  • Qty avail.: 0
PSQ SANITARY 2.5'' 0 / 1000 PSI / BAR 2'' TRI-CLAMP LM 3A
  • USD $512.20 /EACH
  • Retail Price USD $512.20 /EACH
  • EACH
  • Qty avail.: 0
PSQ SANITARY 2.5'' 0 / 160 PSI / BAR 1.5'' TRI-CLAMP CBM 3A
  • USD $506.76 /EACH
  • Retail Price USD $506.76 /EACH
  • EACH
  • Qty avail.: 0
PSQ SANITARY 2.5'' 0 / 160 PSI / BAR 1.5'' TRI-CLAMP LM 3A
  • USD $482.63 /EACH
  • Retail Price USD $482.63 /EACH
  • EACH
  • Qty avail.: 8
PSQ SANITARY 2.5'' 0 / 160 PSI / BAR 2'' TRI-CLAMP CBM 3A
  • USD $537.81 /EACH
  • Retail Price USD $537.81 /EACH
  • EACH
  • Qty avail.: 0
PSQ SANITARY 2.5'' 0 / 160 PSI / BAR 2'' TRI-CLAMP LM 3A
  • USD $512.20 /EACH
  • Retail Price USD $512.20 /EACH
  • EACH
  • Qty avail.: 6
PSQ SANITARY 2.5'' 0 / 200 PSI / BAR 1.5'' TRI-CLAMP CBM 3A
  • USD $506.76 /EACH
  • Retail Price USD $506.76 /EACH
  • EACH
  • Qty avail.: 0
PSQ SANITARY 2.5'' 0 / 200 PSI / BAR 1.5'' TRI-CLAMP LM 3A
  • USD $482.63 /EACH
  • Retail Price USD $482.63 /EACH
  • EACH
  • Qty avail.: 10+
PSQ SANITARY 2.5'' 0 / 200 PSI / BAR 2'' TRI-CLAMP CBM 3A
  • USD $537.81 /EACH
  • Retail Price USD $537.81 /EACH
  • EACH
  • Qty avail.: 0
PSQ SANITARY 2.5'' 0 / 200 PSI / BAR 2'' TRI-CLAMP LM 3A
  • USD $512.20 /EACH
  • Retail Price USD $512.20 /EACH
  • EACH
  • Qty avail.: 10+
PSQ SANITARY 2.5'' 0 / 30 PSI / BAR 1.5'' TRI-CLAMP CBM 3A
  • USD $506.76 /EACH
  • Retail Price USD $506.76 /EACH
  • EACH
  • Qty avail.: 0
PSQ SANITARY 2.5'' 0 / 30 PSI / BAR 1.5'' TRI-CLAMP LM 3A
  • USD $482.63 /EACH
  • Retail Price USD $482.63 /EACH
  • EACH
  • Qty avail.: 2
PSQ SANITARY 2.5'' 0 / 30 PSI / BAR 2'' TRI-CLAMP CBM 3A
  • USD $537.81 /EACH
  • Retail Price USD $537.81 /EACH
  • EACH
  • Qty avail.: 0
PSQ SANITARY 2.5'' 0 / 30 PSI / BAR 2'' TRI-CLAMP LM 3A
  • USD $512.20 /EACH
  • Retail Price USD $512.20 /EACH
  • EACH
  • Qty avail.: 6
PSQ SANITARY 2.5'' 0 / 30 PSI / KG / CM2, 1.5'' TRI-CLAMP LM 3A
  • USD $443.86 /EACH
  • Retail Price USD $443.86 /EACH
  • EACH
  • Qty avail.: 0
PSQ SANITARY 2.5'' 0 / 300 PSI / BAR 1.5'' TRI-CLAMP CBM 3A
  • USD $506.76 /EACH
  • Retail Price USD $506.76 /EACH
  • EACH
  • Qty avail.: 3
PSQ SANITARY 2.5'' 0 / 300 PSI / BAR 1.5'' TRI-CLAMP LM 3A
  • USD $482.63 /EACH
  • Retail Price USD $482.63 /EACH
  • EACH
  • Qty avail.: 3
PSQ SANITARY 2.5'' 0 / 300 PSI / BAR 2'' TRI-CLAMP CBM 3A
  • USD $537.81 /EACH
  • Retail Price USD $537.81 /EACH
  • EACH
  • Qty avail.: 0
