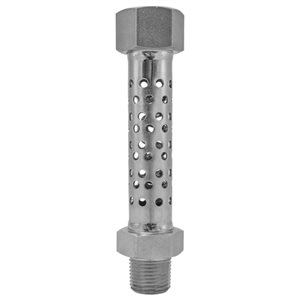

SCT Cooling Tower

APPLICATIONS:

Clean (no particulate) media, gases
When used with a diaphragm seal, the pressure rating of the diaphragm seal must be acknowledged

DESCRIPTION & FEATURES:

Perforated case c/w spiral tubing protects pressure gauges, switches and transmitters. Used where the process media temperature exceeds the rating of the instrument
For process media temperatures up to 570°F. Can reduce the media temperature by as much as 500°F*
RoHS compliant
CRN registered
5 year warranty

DOCUMENTATION:

Socket	316 L SS
Tube	316 SS
Maximum Operating Pressure	1,500 psi
Maximum Process Temperature	570°F (300°C)
Connection	1/4” NPTM x 1/4” NPTF 1/2” NPTM x 1/2” NPTF
* Degree of cooling is dependent on ambient conditions
