PFQ Stainless Steel Liquid Filled Gauge with SAE Connection




APPLICATIONS:

  • Ideal for hydraulic and pneumatic installations requiring instrument orientation

DESCRIPTION & FEATURES:

  • Pulsation resistant, liquid filled stainless steel case
  • Glycerin filled standard (dry case available)
  • Brass internals
  • Restricted orifice standard
  • Crimp-On stainless steel bezel
  • Dual scale (psi/bar)
  • Optional back flange and restrictor screw
  • ASME B40.1 compliant
  • CRN registered
  • 5 year warranty

DOCUMENTATION:

Case AISI 304 SS
Lens Polycarbonate
Ring AISI 304 SS, Crimp-On
Socket Brass with restricted orifice
Connection 7/16″-20 SAE, lower mount
Fill Liquid Glycerin
Bourdon Tube C-shaped for pressures up to and including 600 psi, spiral for pressures above 1000 psi
Movement Brass
Pointer Aluminum, anodized black
Welding Brass: Silver Alloy, 316SS: TIG
Over-Pressure Limit

25% for pressures up to 1,450 psi (9,998 kPa)

15% for pressures over 1,500 psi (10,342 kPa)

Socket Gasket Buna N for two piece internal socket seal
 Fill Plug Buna N
 Lens Ring Gasket Silicone Rubber
Working Pressure Maximum 75% of full scale value
Ambient/Process Temperature

Dry: -40°F to 200°F (-40°C to 93°C)

Glycerine Filled: -4°F to 150°F (-20°C to 65°C)

Accuracy ±1.5% of full scale
Enclosure Rating IP65
Warning Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov.

  • Display Type
  • Results per Page
  • Sort by

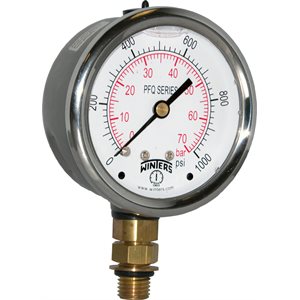

LF / BR 2.5'' 0-1,000 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $40.29 /EACH
  • Retail Price USD $40.29 /EACH
  • EACH
  • Qty avail.: 10+
LF / BR 2.5'' 0-1,500 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $44.33 /EACH
  • Retail Price USD $44.33 /EACH
  • EACH
  • Qty avail.: 10+
LF / BR 2.5'' 0-10,000 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $44.33 /EACH
  • Retail Price USD $44.33 /EACH
  • EACH
  • Qty avail.: 0

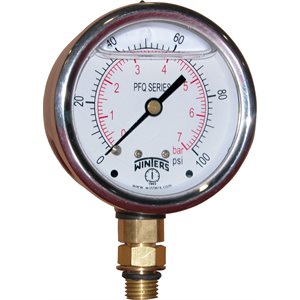

LF / BR 2.5'' 0-100 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $40.29 /EACH
  • Retail Price USD $40.29 /EACH
  • EACH
  • Qty avail.: 0
LF / BR 2.5'' 0-15 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $40.29 /EACH
  • Retail Price USD $40.29 /EACH
  • EACH
  • Qty avail.: 0
LF / BR 2.5'' 0-15,000 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $44.33 /EACH
  • Retail Price USD $44.33 /EACH
  • EACH
  • Qty avail.: 0
LF / BR 2.5'' 0-160 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $40.29 /EACH
  • Retail Price USD $40.29 /EACH
  • EACH
  • Qty avail.: 0

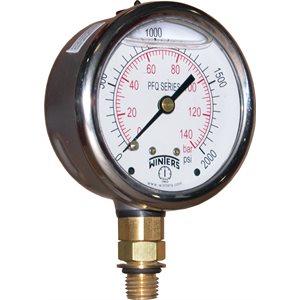

LF / BR 2.5'' 0-2,000 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $44.33 /EACH
  • Retail Price USD $44.33 /EACH
  • EACH
  • Qty avail.: 0

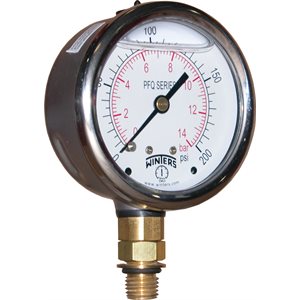

LF / BR 2.5'' 0-200 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $40.29 /EACH
  • Retail Price USD $40.29 /EACH
  • EACH
  • Qty avail.: 0
LF / BR 2.5'' 0-3,000 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $44.33 /EACH
  • Retail Price USD $44.33 /EACH
  • EACH
  • Qty avail.: 10+
LF / BR 2.5'' 0-30 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $40.29 /EACH
  • Retail Price USD $40.29 /EACH
  • EACH
  • Qty avail.: 0
LF / BR 2.5'' 0-300 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $40.29 /EACH
  • Retail Price USD $40.29 /EACH
  • EACH
  • Qty avail.: 2
LF / BR 2.5'' 0-400 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $40.29 /EACH
  • Retail Price USD $40.29 /EACH
  • EACH
  • Qty avail.: 0

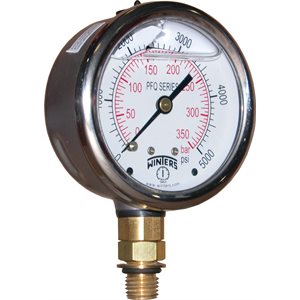

LF / BR 2.5'' 0-5,000 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $44.33 /EACH
  • Retail Price USD $44.33 /EACH
  • EACH
  • Qty avail.: 10+
LF / BR 2.5'' 0-6,000 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $44.33 /EACH
  • Retail Price USD $44.33 /EACH
  • EACH
  • Qty avail.: 0
LF / BR 2.5'' 0-60 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $40.29 /EACH
  • Retail Price USD $40.29 /EACH
  • EACH
  • Qty avail.: 0

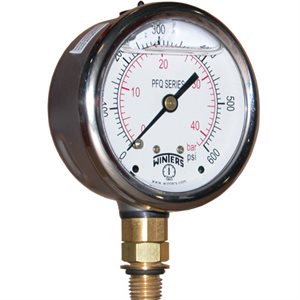

LF / BR 2.5'' 0-600 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $40.29 /EACH
  • Retail Price USD $40.29 /EACH
  • EACH
  • Qty avail.: 0
LF / BR 2.5'' 0-7,500 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $44.33 /EACH
  • Retail Price USD $44.33 /EACH
  • EACH
  • Qty avail.: 0
LF / BR 2.5'' 30'' VACUUM / KPA 7 / 16''-20 SAE BTM
  • USD $44.33 /EACH
  • Retail Price USD $44.33 /EACH
  • EACH
  • Qty avail.: 0
LF / BR 2.5'' 30 / 0 / 100 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $44.33 /EACH
  • Retail Price USD $44.33 /EACH
  • EACH
  • Qty avail.: 0
LF / BR 2.5'' 30 / 0 / 15 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $44.33 /EACH
  • Retail Price USD $44.33 /EACH
  • EACH
  • Qty avail.: 0
LF / BR 2.5'' 30 / 0 / 150 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $44.33 /EACH
  • Retail Price USD $44.33 /EACH
  • EACH
  • Qty avail.: 0
LF / BR 2.5'' 30 / 0 / 200 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $44.33 /EACH
  • Retail Price USD $44.33 /EACH
  • EACH
  • Qty avail.: 0
LF / BR 2.5'' 30 / 0 / 30 PSI / BAR 7 / 16''-20 SAE BTM
  • USD $44.33 /EACH
  • Retail Price USD $44.33 /EACH
  • EACH
  • Qty avail.: 0
