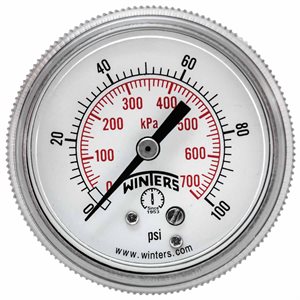

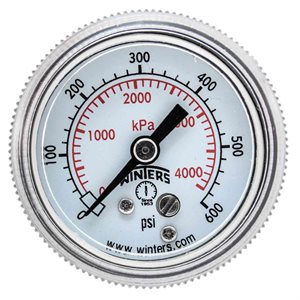

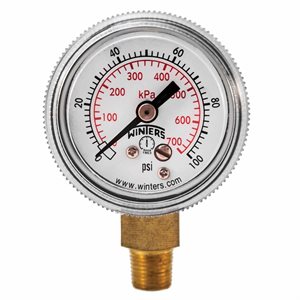

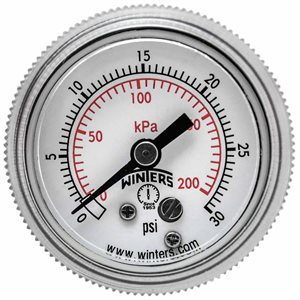

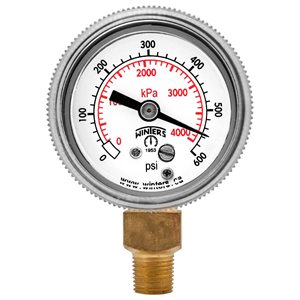

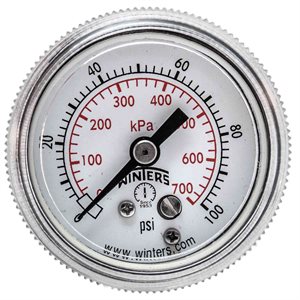

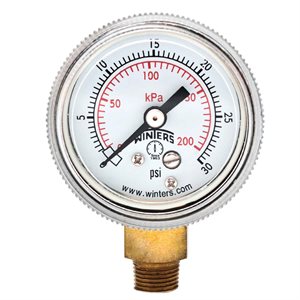

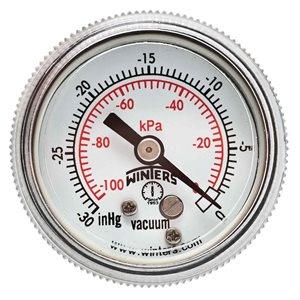

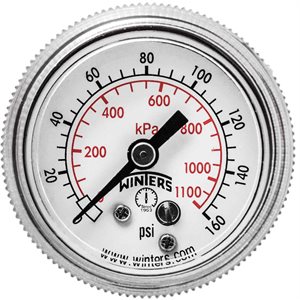

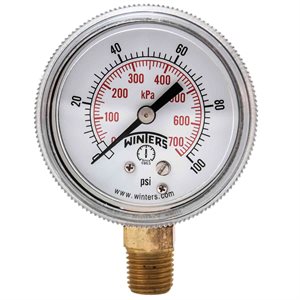

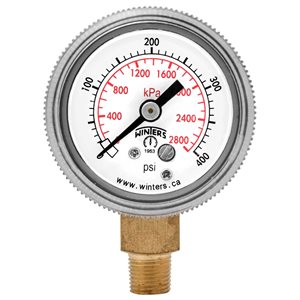

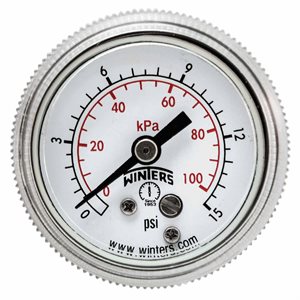

P9S 90 Series Gauge
APPLICATIONS:
- Compressors, filters, regulators, water pumps, paint sprayers and a variety of other rapid pressure fluctuation applications
DESCRIPTION & FEATURES:
- A general-purpose gauge that is serviceable and pulsation resistant
- 1.5″ (40mm) to 3.5″ (90mm) dial sizes
- Dampened movement combined with a “flutterless” pointer
- Removable lens
- Zero-adjustment
- ASME B40.100 compliant
- CRN registered
- ±2-1-2% accuracy
- 5 year warranty
DOCUMENTATION:
Dial | 1.5” (40mm), 2” (50mm), 2.5” (63mm), 3.5” (90mm) white aluminum with black and red markings |
Case | Steel, painted black |
Lens | Acrylic, threaded |
Socket | Brass |
Connection | 1/8” NPT or 1/4” NPT standard |
Bourdon Tube | Phosphor bronze |
Movement | Brass (flutterless) with zero adjustment |
Pointer | Aluminum, black |
Welding | <1,000 psi: 60% tin 40% lead, ≥1,000 psi: silver alloy |
Over-pressure Limit | 25% of full scale value |
Working Pressure | Maximum 75% of full scale value |
Ambient/Process Temperature | -40°F to 150°F (-40°C to 65°C) |
Accuracy | ±2-1-2% ANSI/ASME Grade A |
Warning | Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
