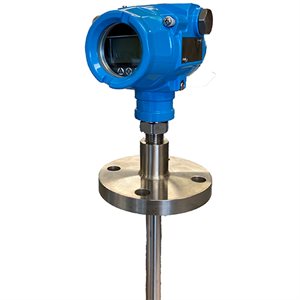

WinSMART™ TY52 SMART Explosion Proof Temperature Transmitter

WINSMART™ TY52 SMART EXPLOSION PROOF TEMPERATURE TRANSMITTER



APPLICATIONS:

    • TY52 can be utilized and installed anywhere where temperature measurement is required. From Oil & Gas installations to Power Generation, this product has a rugged design and is equipped with the communication protocols to meet all your day to day requirements

DESCRIPTION & FEATURES:

      • Integrated temperature transmitter with ASIC signalling transmitter
      • Explosion proof smart temperature transmitter for hazardous locations
      • -50 to 400°C (-58/752°F ) measure range
      • 0.5% accuracy
      • Simple to operate 3-push button control
      • HART® or Modbus communications available
      • Low power option available
      • Re-zero function for safe field calibration
      • 10:1 rangeability allows for installation in any application
      • 5 year warranty

DOCUMENTATION:


    Output Signal 4/20 mA, 2-wire / V = 10-30 Vdc
    4/20 mA + HART, 2-wire / V = 10.5/16.5-30 Vdc
    1/5 Vdc, 3-wire / V = 12-30 Vdc
    Modbus, 4-wire / V = 5/9-30 Vdc
    Sensor Type PT100 RTD
    Measuring Range -50 to 400°C (-58/752°F )
    LCD Display LCD display (standard) or without LCD display (optional)
    Accuracy 0.5% accuracy
    Stability 0.05% or 0.1°C / year
    Temperature Range Working: -40/85°C (with display -20/70°C), -40/185°F (with display -4/158°F)
    Storage: -40/100°C (with display -20/70°C), -40/212°F (with display -4/158°F)
    Working Humidity  0-95%
    Pressure Connection
    1/2” NPTM, 1/2 GM or Flanged
    Housing Rugged die-cast aluminum housing, painted blue
    Wetted Parts 316 SS, 304 SS
    Power Consumption </- 500 mW @ 24 VDC, 20.8 mA
    Vibration 4g, 2…100Hz
    According to IEC 60068-2-6
    Available Temperature Units Celsius (oC), Fahrenheit (oF)
    Protection Class EMI, ESD, RFI, reverse polarity protected
    Approvals Intertek, for USA & Canada
    • Class I, Division 2, Groups A, B, C & D, T6, -40°C to 60°C
    Protection Class IP67

    • Display Type
    • Results per Page
    • Sort by
    TY52 SERIES 1 / 5VDC, PT100 12'' LCD
    • Contact us for pricing

    • Qty avail.: 0
    TY52 SERIES 1 / 5VDC, PT100 16'' LCD
    • Contact us for pricing

    • Qty avail.: 0
    TY52 SERIES 1 / 5VDC, PT100 18'' LCD
    • Contact us for pricing

    • Qty avail.: 0
    TY52 SERIES 1 / 5VDC, PT100 6'' LCD
    • Contact us for pricing

    • Qty avail.: 0
    TY52 SERIES 1 / 5VDC, PT100 8'' LCD
    • Contact us for pricing

    • Qty avail.: 0
    TY52 SERIES 4 / 20MA+HART, PT100 12'' LCD
    • Contact us for pricing

    • Qty avail.: 0
    TY52 SERIES 4 / 20MA+HART, PT100 16'' LCD
    • Contact us for pricing

    • Qty avail.: 0
    TY52 SERIES 4 / 20MA+HART, PT100 18'' LCD
    • Contact us for pricing

    • Qty avail.: 0
    TY52 SERIES 4 / 20MA+HART, PT100 6'' LCD
    • Contact us for pricing

    • Qty avail.: 0
    TY52 SERIES 4 / 20MA+HART, PT100 8'' LCD
    • Contact us for pricing

    • Qty avail.: 0
    TY52 SERIES 4 / 20MA, PT100 12'' LCD
    • Contact us for pricing

    • Qty avail.: 0
    TY52 SERIES 4 / 20MA, PT100 16'' LCD
    • Contact us for pricing

    • Qty avail.: 0
    TY52 SERIES 4 / 20MA, PT100 18'' LCD
    • Contact us for pricing

    • Qty avail.: 0
    TY52 SERIES 4 / 20MA, PT100 6'' LCD
    • Contact us for pricing

    • Qty avail.: 0
    TY52 SERIES 4 / 20MA, PT100 8'' LCD
    • Contact us for pricing

    • Qty avail.: 0
    TY52 SERIES MODBUS, PT100 12'' LCD
    • Contact us for pricing

    • Qty avail.: 0
    TY52 SERIES MODBUS, PT100 16'' LCD
    • Contact us for pricing

    • Qty avail.: 0
    TY52 SERIES MODBUS, PT100 18'' LCD
    • Contact us for pricing

    • Qty avail.: 0
    TY52 SERIES MODBUS, PT100 6'' LCD
    • Contact us for pricing

    • Qty avail.: 0
    TY52 SERIES MODBUS, PT100 8'' LCD
    • Contact us for pricing

    • Qty avail.: 0
