PFQ-LF Lead Free SS Case Liquid Filled Gauge



APPLICATIONS:

  • Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments

DESCRIPTION & FEATURES:

  • Pulsation resistant, liquid filled stainless steel case
  • Glycerin filled standard
  • Brass or lead free brass and stainless steel internals
  • Restricted orifice
  • Crimp-On bezel
  • Single (psi) or dual scale (psi/kPa)/(psi/bar) available
  • Optional U-Clamps and front flanges
  • Dry case available
  • ASME B40.100 compliant
  • RoHS compliant (SS internals only)
  • CRN registered
  • 5 year warranty

DOCUMENTATION:

Case AISI 304 SS
Lens

Polycarbonate

Ring AISI 304 SS, Crimp-On
Socket

PFQ: OT 58 brass or AISI 316 SS

PFQ-LF: Lead free brass

Connection 1/8”, 1/4” or 1/2” NPT standard with restricted orifice
Fill Liquid Glycerin
Bourdon Tube

1.5” (40mm), 2″ (50mm): Phosphor bronze C or coil shaped for brass socket SS C or coil shaped for 316 SS socket

2.5” (63mm), 4” (100mm): Phosphor bronze or lead free phosphor bronze C or coil shaped for brass socket, AISI 316 SS C or coil shaped for 316 SS socket

Movement OT 59 brass or SS
Pointer Aluminum, anodized black
Welding

Brass: Silver alloy,

316SS: TIG

Over-pressure Limit

25% for pressures up to 1,450 psi (9,998 kPa)

15% for pressures over 1,450 psi (9,998 kPa)

Socket Material  Buna N for two-piece internal socket seal
Fill Plug Buna N
Lens Ring Gasket Silicone rubber
Working Pressure Maximum 75% of full scale value
Ambient/Process Temperature

Dry: -40°F to 200°F (-40°C to 93°C)

Glycerin Filled: -4°F to 150°F (-20°C to 65°C)

Accuracy

1.5” (40mm), 2″ (50mm): ±2.5% of full scale

2.5” (63mm), 4” (100mm): ±1.5% of full scale value

Enclosure Rating IP65
Warning (brass and lead free brass internals only) Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov.

  • Display Type
  • Results per Page
  • Sort by
4" DIAL, 0-200 PSI ONLY , 1 / 2" BTM. CONNECT, LF
  • USD $145.68 /EACH
  • Retail Price USD $145.68 /EACH
  • EACH
  • Qty avail.: 0
4" DIAL, 0-600 PSI ONLY, 1 / 2" BTM. CONNECT, LF
  • USD $145.68 /EACH
  • Retail Price USD $145.68 /EACH
  • EACH
  • Qty avail.: 0
4" DIAL, 1 / 2" NPT BTM, 0 / 30 PSI / KPA, LF
  • Contact us for pricing

  • Qty avail.: 0
PFQ-LF SERIES (LEAD-FREE) 2.5'' 0 / 6000 PSI / KPA 1 / 4''NPT CBM
  • USD $43.94 /EACH
  • Retail Price USD $43.94 /EACH
  • EACH
  • Qty avail.: 0

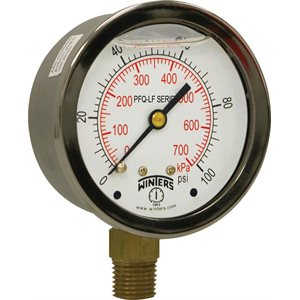

PFQ-LF SERIES (LEAD-FREE) 2.5'' 0 / 100 PSI / KPA 1 / 4'' NPT CBM
  • USD $39.94 /EACH
  • Retail Price USD $39.94 /EACH
  • EACH
  • Qty avail.: 6
PFQ-LF SERIES (LEAD-FREE) 2.5'' 0 / 100 PSI / KPA 1 / 4'' NPT LM
  • USD $38.42 /EACH
  • Retail Price USD $38.42 /EACH
  • EACH
  • Qty avail.: 10+

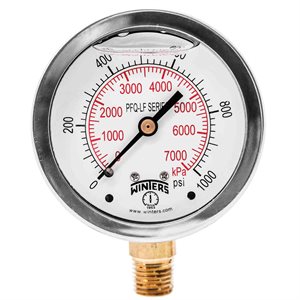

PFQ-LF SERIES (LEAD-FREE) 2.5'' 0 / 1000 PSI / KPA 1 / 4'' NPT CBM
  • USD $39.94 /EACH
  • Retail Price USD $39.94 /EACH
  • EACH
  • Qty avail.: 0
PFQ-LF SERIES (LEAD-FREE) 2.5'' 0 / 1000 PSI / KPA 1 / 4'' NPT LM
  • USD $38.42 /EACH
  • Retail Price USD $38.42 /EACH
  • EACH
  • Qty avail.: 10+
PFQ-LF SERIES (LEAD-FREE) 2.5'' 0 / 10000 PSI / KPA 1 / 4'' NPT CBM
  • USD $44.38 /EACH
  • Retail Price USD $44.38 /EACH
  • EACH
  • Qty avail.: 0
PFQ-LF SERIES (LEAD-FREE) 2.5'' 0 / 10000 PSI / KPA 1 / 4'' NPT LM
  • USD $40.33 /EACH
  • Retail Price USD $40.33 /EACH
  • EACH
  • Qty avail.: 0

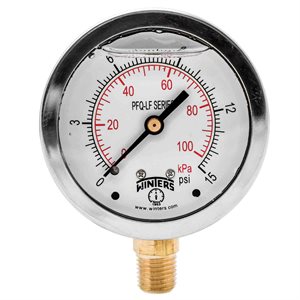

PFQ-LF SERIES (LEAD-FREE) 2.5'' 0 / 15 PSI / KPA 1 / 4'' NPT CBM
  • USD $39.94 /EACH
  • Retail Price USD $39.94 /EACH
  • EACH
  • Qty avail.: 0
PFQ-LF SERIES (LEAD-FREE) 2.5'' 0 / 15 PSI / KPA 1 / 4'' NPT LM
  • USD $38.42 /EACH
  • Retail Price USD $38.42 /EACH
  • EACH
  • Qty avail.: 10+
PFQ-LF SERIES (LEAD-FREE) 2.5'' 0 / 1500 PSI / KPA 1 / 4'' NPT CBM
  • USD $43.94 /EACH
  • Retail Price USD $43.94 /EACH
  • EACH
  • Qty avail.: 0
PFQ-LF SERIES (LEAD-FREE) 2.5'' 0 / 1500 PSI / KPA 1 / 4'' NPT LM
  • USD $39.94 /EACH
  • Retail Price USD $39.94 /EACH
  • EACH
  • Qty avail.: 0

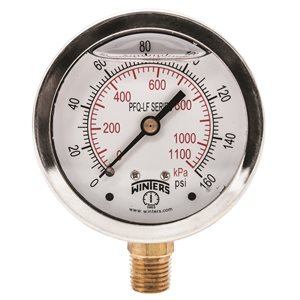

PFQ-LF SERIES (LEAD-FREE) 2.5'' 0 / 160 PSI / KPA 1 / 4'' NPT CBM
  • USD $39.94 /EACH
  • Retail Price USD $39.94 /EACH
  • EACH
  • Qty avail.: 5
PFQ-LF SERIES (LEAD-FREE) 2.5'' 0 / 160 PSI / KPA 1 / 4'' NPT LM
  • USD $38.42 /EACH
  • Retail Price USD $38.42 /EACH
  • EACH
  • Qty avail.: 10+

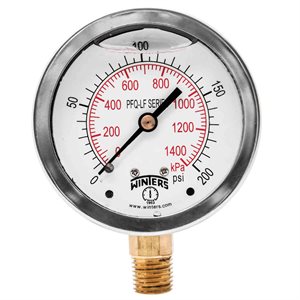

PFQ-LF SERIES (LEAD-FREE) 2.5'' 0 / 200 PSI / KPA 1 / 4'' NPT CBM
  • USD $39.94 /EACH
  • Retail Price USD $39.94 /EACH
  • EACH
  • Qty avail.: 6
PFQ-LF SERIES (LEAD-FREE) 2.5'' 0 / 200 PSI / KPA 1 / 4'' NPT LM
  • USD $38.42 /EACH
  • Retail Price USD $38.42 /EACH
  • EACH
  • Qty avail.: 10+
PFQ-LF SERIES (LEAD-FREE) 2.5'' 0 / 2000 PSI / KPA 1 / 4'' NPT CBM
  • USD $43.94 /EACH
  • Retail Price USD $43.94 /EACH
  • EACH
  • Qty avail.: 0
PFQ-LF SERIES (LEAD-FREE) 2.5'' 0 / 2000 PSI / KPA 1 / 4'' NPT LM
  • USD $39.94 /EACH
  • Retail Price USD $39.94 /EACH
  • EACH
  • Qty avail.: 10+

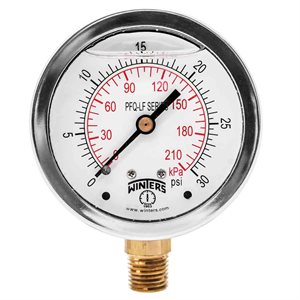

PFQ-LF SERIES (LEAD-FREE) 2.5'' 0 / 30 PSI / KPA 1 / 4'' NPT CBM
  • USD $39.94 /EACH
  • Retail Price USD $39.94 /EACH
  • EACH
  • Qty avail.: 9
PFQ-LF SERIES (LEAD-FREE) 2.5'' 0 / 30 PSI / KPA 1 / 4'' NPT LM
  • USD $38.42 /EACH
  • Retail Price USD $38.42 /EACH
  • EACH
  • Qty avail.: 10+

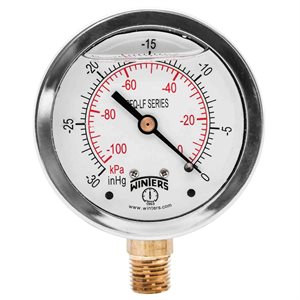

PFQ-LF SERIES (LEAD-FREE) 2.5'' 0 / 30'' VAC / KPA 1 / 4'' NPT CBM
  • USD $43.94 /EACH
  • Retail Price USD $43.94 /EACH
  • EACH
  • Qty avail.: 0
PFQ-LF SERIES (LEAD-FREE) 2.5'' 0 / 30'' VAC / KPA 1 / 4'' NPT BTM
  • USD $39.94 /EACH
  • Retail Price USD $39.94 /EACH
  • EACH
  • Qty avail.: 10+
