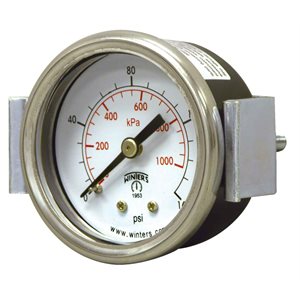

PEU Economy Panel Mounted Gauge




APPLICATIONS:

  • For measuring gases, air, water and oils when equipment or processes require an economical panel mounted gauge

DESCRIPTION & FEATURES:

  • Most economical pressure gauge used for panels
  • 1.5” (40mm) to 2.5” (63mm) dial sizes
  • Black steel case
  • Brass wetted parts
  • Stainless steel crimp-on bezel
  • Stud-style U-Clamp design for secure panel mounting
  • ±3-2-3% accuracy
  • Dual scale (psi/kPa)
  • ASME B40.100 compliant
  • CRN registered
  • 5 year warranty

DOCUMENTATION:

Case Steel, painted black
Lens Polycarbonate
Ring SS
Socket Brass
Connection 1/8” NPT or 1/4” NPT standard
Bourdon Tube Phosphor bronze
Movement Brass
Pointer Aluminum, black
Welding Silver alloy
Over-Pressure Limit 25% of full scale value
Working Pressure Maximum 75% of full scale value
Ambient/Process Temperature -40°F to 150°F  (-40°C to 65°C)
Accuracy ±3-2-3% ANSI/ASME Grade B
Enclosure Rating IP52
Warning Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov.

  • Display Type
  • Results per Page
  • Sort by

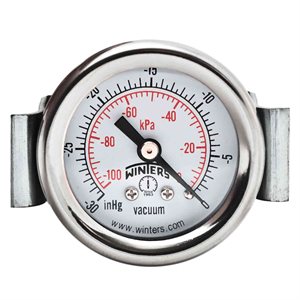

1.5" X 1 / 8" BACK 0-30" VAC / KPA U-CLAMP
  • USD $23.05 /EACH
  • Retail Price USD $23.05 /EACH
  • EACH
  • Qty avail.: 10+

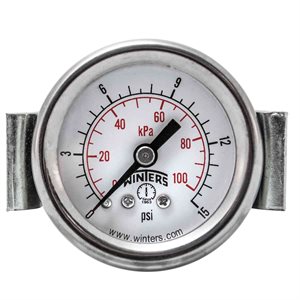

1.5"x1 / 8" BACK 0 / 15 PSI / KPA U-CLAMP
  • USD $22.15 /EACH
  • Retail Price USD $22.15 /EACH
  • EACH
  • Qty avail.: 10+
2" x 1 / 4" NPT BACK 0 / 15 PSI / KPA U-CLAMP
  • USD $22.31 /EACH
  • Retail Price USD $22.31 /EACH
  • EACH
  • Qty avail.: 6

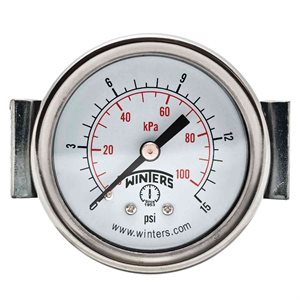

2" X 1 / 8" BACK 0-15 PSI / KPA U-CLAMP
  • USD $22.31 /EACH
  • Retail Price USD $22.31 /EACH
  • EACH
  • Qty avail.: 10+

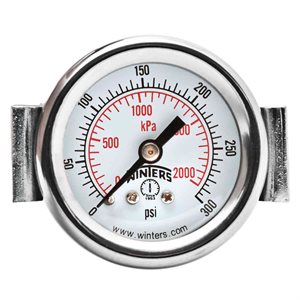

2" x 1 / 8" BACK 0-300 PSI / KPA U-CLAMP
  • USD $22.31 /EACH
  • Retail Price USD $22.31 /EACH
  • EACH
  • Qty avail.: 6
2" x 1 / 8" NPT BACK 0 / 30" VAC / KPA U-CLAMP
  • USD $23.20 /EACH
  • Retail Price USD $23.20 /EACH
  • EACH
  • Qty avail.: 10+
2.5" DIAL, U-CLAMP 1 / 4" BACK 0-15PSI / KPA
  • USD $28.17 /EACH
  • Retail Price USD $28.17 /EACH
  • EACH
  • Qty avail.: 0

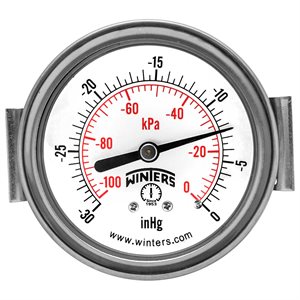

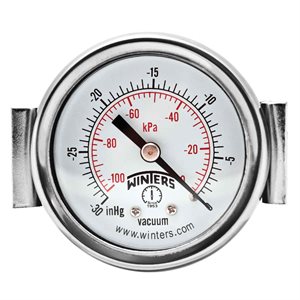

2.5" DIAL, U-CLAMP 1 / 4" BACK 0-30" HG
  • USD $29.29 /EACH
  • Retail Price USD $29.29 /EACH
  • EACH
  • Qty avail.: 9

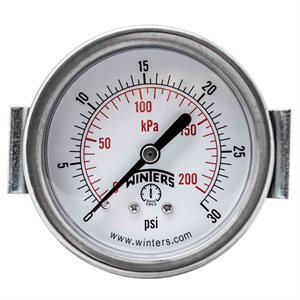

2.5" DIAL, U-CLAMP 1 / 4" BACK 0-30PSI / KPA
  • USD $28.17 /EACH
  • Retail Price USD $28.17 /EACH
  • EACH
  • Qty avail.: 0
2.5" DIAL, U-CLAMP 1 / 4" BACK 0-60PSI / KPA
  • USD $28.17 /EACH
  • Retail Price USD $28.17 /EACH
  • EACH
  • Qty avail.: 8

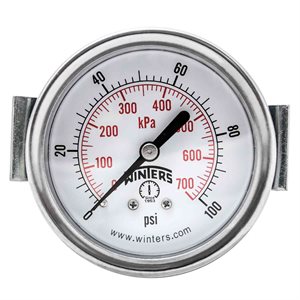

2.5" DIAL, U-CLAMP 1 / 4"BACK 0-100PSI / KPA
  • USD $28.17 /EACH
  • Retail Price USD $28.17 /EACH
  • EACH
  • Qty avail.: 10+

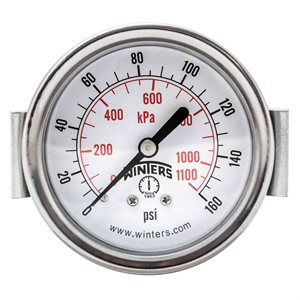

2.5" DIAL, U-CLAMP 1 / 4"BACK 0-160PSI / KPA
  • USD $28.17 /EACH
  • Retail Price USD $28.17 /EACH
  • EACH
  • Qty avail.: 10+
2.5" DIAL, U-CLAMP 1 / 4"BACK 0-200PSI / KPA
  • USD $28.17 /EACH
  • Retail Price USD $28.17 /EACH
  • EACH
  • Qty avail.: 6

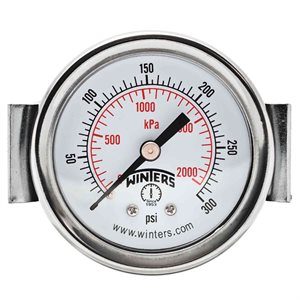

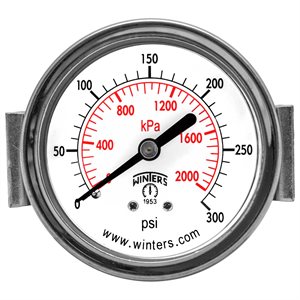

2.5" DIAL,U-CLAMP 1 / 4" BACK 0-300PSI / KPA
  • USD $28.17 /EACH
  • Retail Price USD $28.17 /EACH
  • EACH
  • Qty avail.: 3

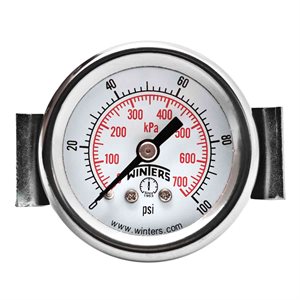

ECON / U-CLAMP 1.5" 0-100PSI / KPA 1 / 8" BACK
  • USD $22.15 /EACH
  • Retail Price USD $22.15 /EACH
  • EACH
  • Qty avail.: 10+

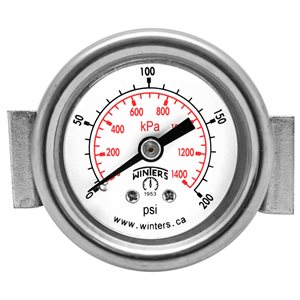

ECON / U-CLAMP 1.5" 0-200PSI / KPA 1 / 8" BACK
  • USD $22.15 /EACH
  • Retail Price USD $22.15 /EACH
  • EACH
  • Qty avail.: 0
ECON / U-CLAMP 1.5" 0-300PSI / KPA 1 / 8" BACK
  • USD $22.15 /EACH
  • Retail Price USD $22.15 /EACH
  • EACH
  • Qty avail.: 0

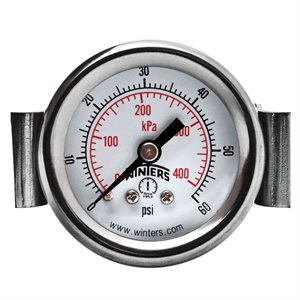

ECON / U-CLAMP 1.5" 0-60 PSI / KPA 1 / 8" BACK
  • USD $22.15 /EACH
  • Retail Price USD $22.15 /EACH
  • EACH
  • Qty avail.: 10
ECON / U-CLAMP 1 / 5" 0-160PSI / KPA 1 / 8" BACK
  • USD $22.15 /EACH
  • Retail Price USD $22.15 /EACH
  • EACH
  • Qty avail.: 10+

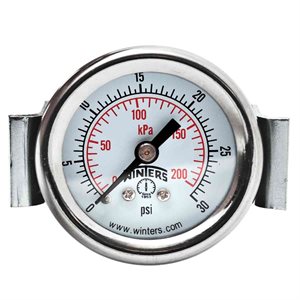

ECON / U-CLAMP 1 / 5" 0-30 PSI / KPA 1 / 8" BACK
  • USD $22.15 /EACH
  • Retail Price USD $22.15 /EACH
  • EACH
  • Qty avail.: 10+

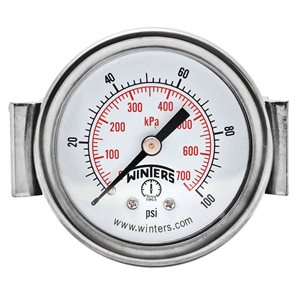

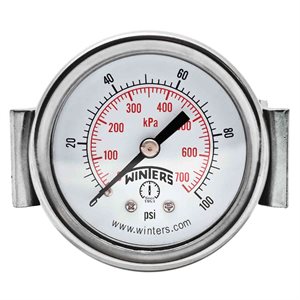

ECON / U-CLAMP 2" 0-100 PSI / KPA 1 / 4" BACK
  • USD $22.31 /EACH
  • Retail Price USD $22.31 /EACH
  • EACH
  • Qty avail.: 10+
ECON / U-CLAMP 2" 0-100 PSI / KPA 1 / 8" BACK
  • USD $22.31 /EACH
  • Retail Price USD $22.31 /EACH
  • EACH
  • Qty avail.: 10+

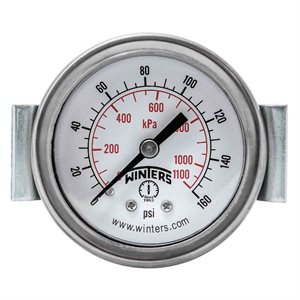

ECON / U-CLAMP 2" 0-160 PSI / KPA 1 / 4" BACK
  • USD $22.31 /EACH
  • Retail Price USD $22.31 /EACH
  • EACH
  • Qty avail.: 10+

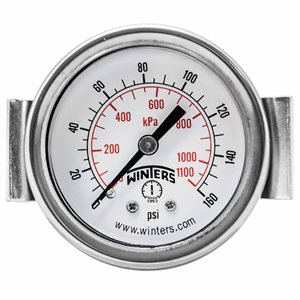

ECON / U-CLAMP 2" 0-160 PSI / KPA 1 / 8" BACK
  • USD $22.31 /EACH
  • Retail Price USD $22.31 /EACH
  • EACH
  • Qty avail.: 10+
