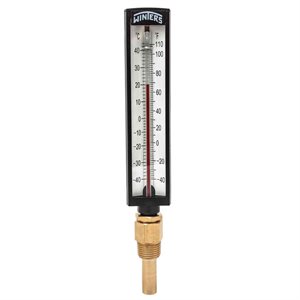

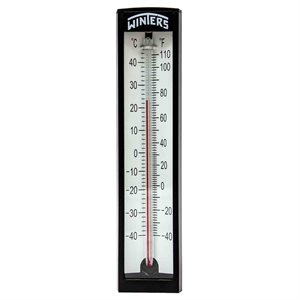

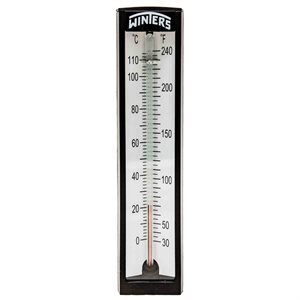

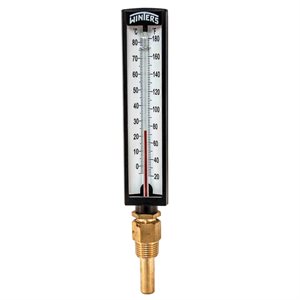

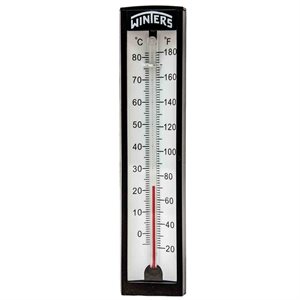

TAS/TAS-LF Industrial/Lead Free Industrial 5” Thermometer
DownloadAPPLICATIONS:
- Hot water lines, boilers, heating, ventilation and air conditioning
DESCRIPTION & FEATURES:
- An all-purpose, economical thermometer with a vertical sensing tube and case

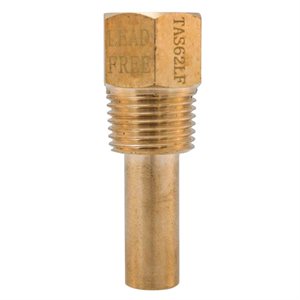

- Separable brass, lead free brass or stainless steel thermowell
- Impact resistant ABS case
- Red liquid-in glass
- Dual scale (°F & °C)

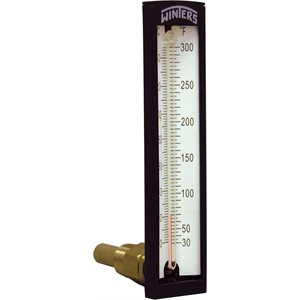

- Straight or angle connection
- 1/2” NPT process connection
- ASME B40.200 and ASTM E2251 compliant
- RoHS compliant (with SS thermowell only)
- 5 year warranty
DOCUMENTATION:
| Scale | Aluminum, painted white with black markings |
| Case | 5″ (127mm) black ABS |
| Lens | Glass |
| Tube | Glass, cushioned |
| Liquid Filling | Kerosene, tinted red |
| Stem | Brass |
| Swivel Nut | Brass |
| Thermowell | TAS: Brass 1/2” NPT standard (3/4″ and SS optional) TAS-LF: Lead free brass 1/2” NPT standard (3/4″ optional) |
| Operating Pressure | Maximum 710 psi (4,895 kPa) |
| Ambient Temperature | -40°F to 122°F (-40°C to 50°C) |
| Process Temperature | -40°F to 400°F (-40°C to 204°C) |
| Accuracy | ±2% of full scale |
| Enclosure Rating | IP50 |
