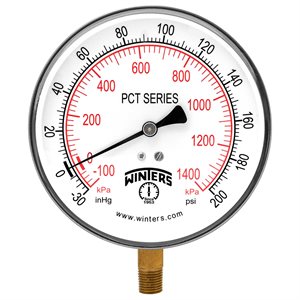

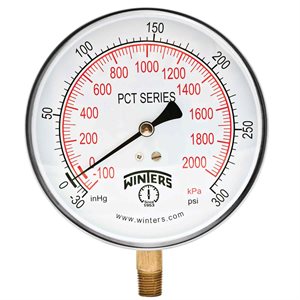

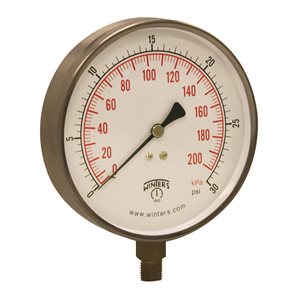

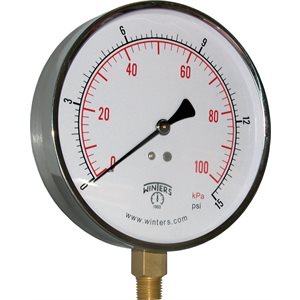

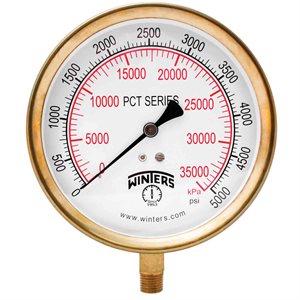

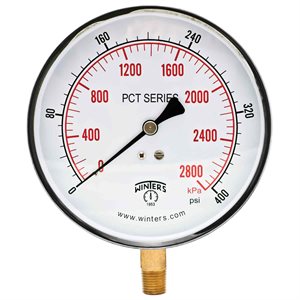

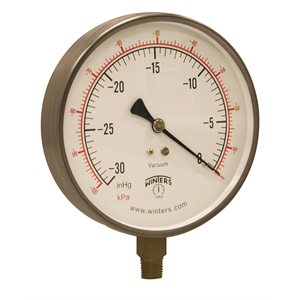

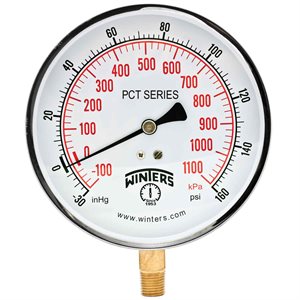

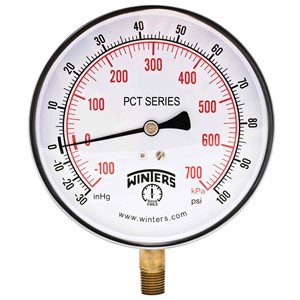

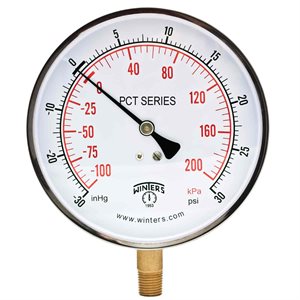

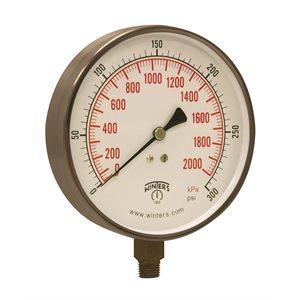

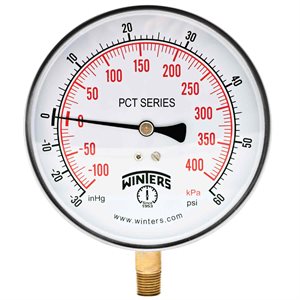

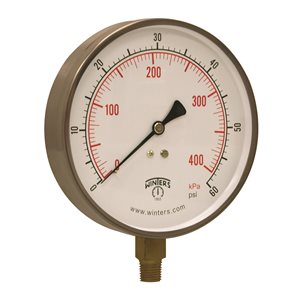

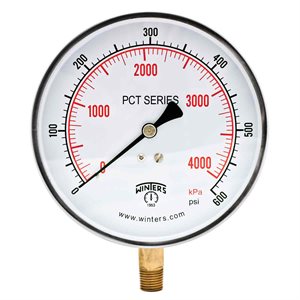

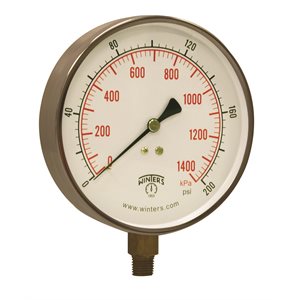

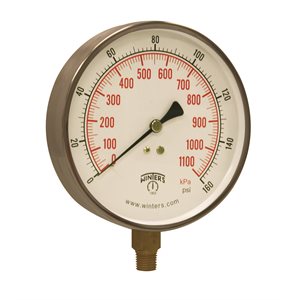

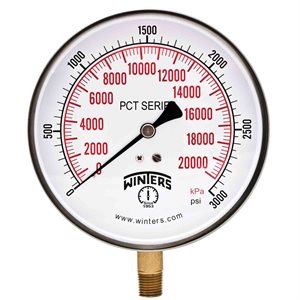

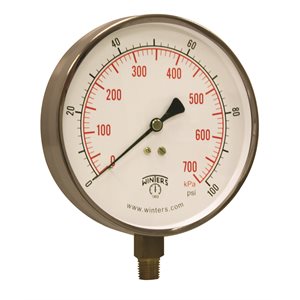

PCT/PCT-LF Contractor/Lead Free Contractor Gauge
APPLICATIONS:
- Most commercial air, water and steam services that require a ±1% full-scale accuracy
DESCRIPTION & FEATURES:
- Economical 4.5” (115mm) stainless steel case gauge
- Brass or lead free brass wetted parts
- ±1% accuracy
- Zero adjustment screw
- 1/4” NPT
- Restricted orifice
- ASME B40.100 compliant
- CRN registered
- Lead free version NSF-61-372 certified
- 5 year warranty
DOCUMENTATION:
Case | 304 SS |
Lens | Acrylic |
Ring | 304 SS |
Socket | PCT: Brass PCT-LF: Lead free brass, NSF-61-372 certified |
Connection | 1/4” NPT standard |
Bourdon Tube | Phosphor bronze |
Movement | PCT: Brass PCT-LF: Lead free brass, NSF-61-372 certified |
Pointer | Aluminum, anodized black, recalibrator screw |
Welding | Silver solder |
Over-Pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,500 psi (10,342 kPa) |
Working Pressure | Maximum 75% of full scale value |
Ambient/Process Temperature | -40°F to 200°F (-40°C to 93°C) |
Accuracy | ±1% ANSI/ASME Grade 1A |
Enclosure Rating | IP52 |
Warning | Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
