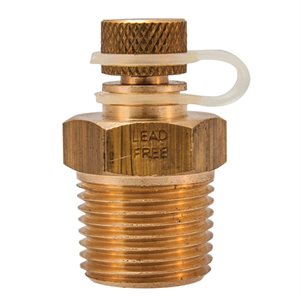

STP/STP-LF Test Plug/Lead Free Test Plug

Lead Free

APPLICATIONS:

Mainly used in plumbing, heating, ventilation and air conditioning installations

DESCRIPTION & FEATURES:

Facilitates quick pressure and temperature readings at recommended test points within process
Test plugs are available with brass or lead free brass wetted parts
Gauge adapters ship with protective aluminum sleeve
ASME B1.20.1 compliant
CRN registered
5 year warranty

DOCUMENTATION:

Material/Body	STP: Brass STP-LF: Lead free brass
Diaphragm/Core	NBR (Buna N)
Temperature Rating	-40°F to 302°F (-40°C to 150°C)
Maximum Pressure Rating	1,000 psi (6,895 kPa)
Connection	1/4” NPT or 1/2” NPT
Warning	Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
