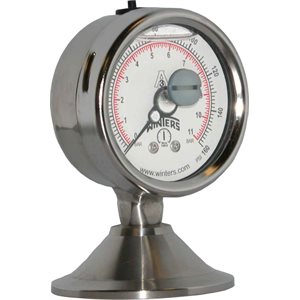

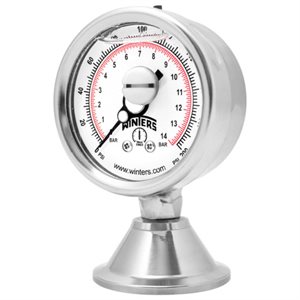

PAG 3A Premium Pharmaceutical & Sanitary Gauge
APPLICATIONS:
- Built to withstand the harshest of sanitary applications and where 3A approval is required
DESCRIPTION & FEATURES:
- Designed for food, beverage & dairy and pharmaceutical applications
- ±0.75% full scale accuracy
- Food grade glycerin filling standard
- Re-zero feature standard
- Crack/breakage-resistant polycarbonate lens standard
- Clean-In-Place design
- Steam-In-Place design
- Autoclavable
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
DOCUMENTATION:
Case | 304 SS, polished |
Repeatability | 0.25% of full scale |
Linearity | 0.25% of full scale |
Lens | 3/16″ thick polycarbonate |
Over-range Capability | 50% of full scale |
Hysteresis | 0.25% of full scale |
CIP Temperature Limit | 250°F (121°C) continuous |
SIP Temperature Limit | 300°F (149°C) 1 hour, dry |
Bourdon Tube | 316L SS, welded |
Socket | 316L SS, welded |
Storage Temperature | -22°F to 195°F (-30°C to 91°C) |
Temperature Effect | Less than 0.16% per 10°F (5.5°C) change in process or ambient temperature |
Actuating Fill | Food grade glycerin standard (Mineral oil, silicone and Neobee-20 optional) |
Case Fluid | Food grade glycerin standard (Dry, mineral oil, silicone and Neobee-20 optional) |
Pulsation Dampening | Standard |
Re-zero Feature | Externally adjustable micrometer pointer |
Wetted Parts | 316L SS, Ra = 8 microinches |
Bezel | 304 SS, polished |
Ambient Temperature | 40°F to 140°F (4°C to 60°C) |
Process Temperature | 0°F to 250°F (-18°C to 121°C) |
Accuracy | ±0.75% of full scale value |
