MVA 3 & 5 Handle Manifold Valve

MVA 3 & 5 HANDLE MANIFOLD VALVE



APPLICATIONS:

    • Designed to be perfectly installed with Winters LY36 Series differential transmitter. Manifolds are critical in process and industrial environments for the enabling of shut-downs for the testing, repair and upgrading of instruments.

DESCRIPTION & FEATURES:

    • Rugged 3 or 5 -handle manifolds are designed for use with differential pressure transmitters and impulse lines
    • 1-piece 316 stainless steel body
    • 3-handle – 2 isolation valves, 1 equalizing valve and 2 vent valves
    • 5 – handle – 2 isolation valves, 1 equalizing valve
    • PTFE packing to prevent against corrosion and seized up
    • CRN Pending
    • 5 year warranty

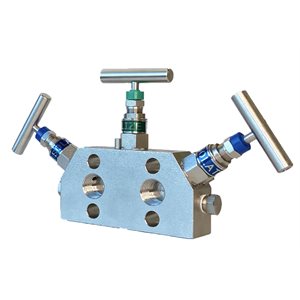

3 – Handle

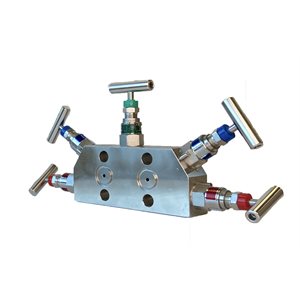

5 – Handle

NPT Connection 1/2” Female x 1/2” Female 1/2” Female x 1/2” Female
Material Stainless Steel Stainless Steel
Seat Hard Set Hard Set
Max Pressure 6,000 psi 6,000 psi

  • Display Type
  • Results per Page
  • Sort by
MVA 3-HANDLE, SS, HARD, 1 / 2NPT FXF, 6K PSI
  • Contact us for pricing

  • Qty avail.: 0
MVA 5-HANDLE, SS, HARD, 1 / 2NPT FXF, 6K PSI
  • Contact us for pricing

  • Qty avail.: 0
