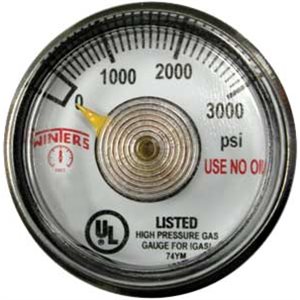

PSP Spiral Tube Gauge



APPLICATIONS:

  • Commonly used on portable pneumatic equipment as compressors, hand-held sprayers, pressurized recreational guns, oxygen tanks and regulators, pumps and fire extinguishers

DESCRIPTION & FEATURES:

  • Reliable, small diameter, low profile gauge
  • 1” (25mm) to 1.5” (40mm) sizes
  • 1/8” NPT socket
  • Direct drive (no linkages or hairsprings) eliminating premature failure from the gear and movement
  • Safety over-pressure port on the lens
  • “Use No Oil” for use in oxygen service
  • ASME B40.100 compliant
  • CRN registered
  • UL listed for 1.25” and 1.5” gauges
  • 5 year warranty

DOCUMENTATION:

Case 1” (25mm:) Nickel plated brass
Others: 304 SS
Lens Plexiglass
Spiral/Socket 60 to 2,000 psi: Brass
3,000 psi: 304 SS
Connection 1/8” NPT standard, back
Pointer 2,000 psi and below: Brass
3,000 psi and above: 304 SS
Over-pressure Limit

10% of full scale value

25% of full scale value (0-3,000 psi, UL404 listed)

Working Pressure Maximum 75% of full scale value
Ambient/Process Temperature -40°F to 150°F (-40°C to 65°C)
Accuracy ±3-2-3% ANSI/ASME Grade B
Enclosure Rating IP65
Warning (brass internals only) Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov.

  • Display Type
  • Results per Page
  • Sort by
1" SPIRAL TUBE PRESSURE GAUGE, 0 / 3000 PSI, 1 / 8" BK
  • USD $11.62 /EACH
  • Retail Price USD $11.62 /EACH
  • EACH
  • Qty avail.: 0
1-1 / 8" SPIRAL TUBE 0 / 160 PSI ONLY 1 / 8" NPT BACK
  • USD $10.56 /EACH
  • Retail Price USD $10.56 /EACH
  • EACH
  • Qty avail.: 0
1-1 / 8" SPIRAL TUBE 0 / 60 PSI ONLY 1 / 8" NPT BACK
  • USD $10.56 /EACH
  • Retail Price USD $10.56 /EACH
  • EACH
  • Qty avail.: 0
1.25" SPIRAL TUBE 0-4000 PSI 1 / 8" NPT
  • USD $11.51 /EACH
  • Retail Price USD $11.51 /EACH
  • EACH
  • Qty avail.: 0
1.25" SPIRAL TUBE 0-5000 PSI 1 / 8" NPT
  • USD $11.51 /EACH
  • Retail Price USD $11.51 /EACH
  • EACH
  • Qty avail.: 0
1.25" SPIRAL TUBE 0 / 100 PSI 1 / 8" NPT
  • USD $10.46 /EACH
  • Retail Price USD $10.46 /EACH
  • EACH
  • Qty avail.: 10+
1.25" SPIRAL TUBE 0 / 1000 PSI 1 / 8" NPT
  • USD $10.46 /EACH
  • Retail Price USD $10.46 /EACH
  • EACH
  • Qty avail.: 0
1.25" SPIRAL TUBE 0 / 1500 PSI 1 / 8" NPT
  • USD $11.51 /EACH
  • Retail Price USD $11.51 /EACH
  • EACH
  • Qty avail.: 10+
1.25" SPIRAL TUBE 0 / 160 PSI 1 / 8" NPT
  • USD $10.46 /EACH
  • Retail Price USD $10.46 /EACH
  • EACH
  • Qty avail.: 0
1.25" SPIRAL TUBE 0 / 200 PSI 1 / 8" NPT
  • USD $10.46 /EACH
  • Retail Price USD $10.46 /EACH
  • EACH
  • Qty avail.: 0
1.25" SPIRAL TUBE 0 / 2000 PSI 1 / 8" NPT
  • USD $11.51 /EACH
  • Retail Price USD $11.51 /EACH
  • EACH
  • Qty avail.: 0
1.25" SPIRAL TUBE 0 / 300 PSI 1 / 8" NPT
  • USD $10.46 /EACH
  • Retail Price USD $10.46 /EACH
  • EACH
  • Qty avail.: 0
1.25" SPIRAL TUBE 0 / 3000 PSI 1 / 8" NPT
  • USD $11.51 /EACH
  • Retail Price USD $11.51 /EACH
  • EACH
  • Qty avail.: 0
1.25" SPIRAL TUBE 0 / 60 PSI 1 / 8" NPT
  • USD $10.46 /EACH
  • Retail Price USD $10.46 /EACH
  • EACH
  • Qty avail.: 0
1.25" SPIRAL TUBE 0 / 600 PSI 1 / 8" NPT
  • USD $10.46 /EACH
  • Retail Price USD $10.46 /EACH
  • EACH
  • Qty avail.: 0
1.5" SPIRAL TUBE 0-4000 PSI 1 / 8" NPT
  • USD $11.51 /EACH
  • Retail Price USD $11.51 /EACH
  • EACH
  • Qty avail.: 7
1.5" SPIRAL TUBE 0-5000 PSI 1 / 8" NPT
  • USD $11.51 /EACH
  • Retail Price USD $11.51 /EACH
  • EACH
  • Qty avail.: 0
1.5" SPIRAL TUBE 0 / 100 PSI 1 / 8" NPT
  • USD $10.46 /EACH
  • Retail Price USD $10.46 /EACH
  • EACH
  • Qty avail.: 4
1.5" SPIRAL TUBE 0 / 1000 PSI 1 / 8" NPT
  • USD $10.46 /EACH
  • Retail Price USD $10.46 /EACH
  • EACH
  • Qty avail.: 10+
1.5" SPIRAL TUBE 0 / 1500 PSI 1 / 8" NPT
  • USD $11.51 /EACH
  • Retail Price USD $11.51 /EACH
  • EACH
  • Qty avail.: 10+
1.5" SPIRAL TUBE 0 / 160 PSI 1 / 8" NPT
  • USD $10.46 /EACH
  • Retail Price USD $10.46 /EACH
  • EACH
  • Qty avail.: 0
1.5" SPIRAL TUBE 0 / 200 PSI 1 / 8" NPT
  • USD $10.46 /EACH
  • Retail Price USD $10.46 /EACH
  • EACH
  • Qty avail.: 9
1.5" SPIRAL TUBE 0 / 2000 PSI 1 / 8" NPT
  • USD $11.51 /EACH
  • Retail Price USD $11.51 /EACH
  • EACH
  • Qty avail.: 10+
1.5" SPIRAL TUBE 0 / 300 PSI 1 / 8" NPT
  • USD $10.46 /EACH
  • Retail Price USD $10.46 /EACH
  • EACH
  • Qty avail.: 10+
