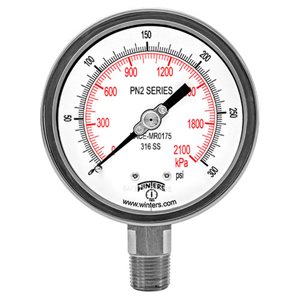

PN2 NACE Liquid Filled Gauge - MR0175-2002




APPLICATIONS:

  • Sour gas applications requiring gauges that meet NACE International Standards

DESCRIPTION & FEATURES:

  • Designed for sour gas applications requiring NACE Standards MR0175-2002 (NACE Standards MR0103-2003 available)
  • Glycerin and H2O filled case
  • Blow out back plug standard
  • Under and overload stops
  • Wetted parts meet hardness requirements
  • ASME B40.100 compliant (EN837-1 compliant)
  • RoHS compliant
  • CRN registered
  • 5 year warranty

DOCUMENTATION:

Case 304 SS
Lens Laminated safety glass
Ring 304 SS, bayonet
Socket 316L SS
Connection 1/4” or 1/2” NPT, bottom or back
Bourdon Tube 316L SS
Movement 304 SS with under and overload stops
Pointer Aluminum, anodized black, micrometer adjustable
Fill Liquid Glycerin/H2O
Over-Pressure Limit

25% for pressures up to 1,450 psi (9,998 kPa)

15% for pressures over 1,450 psi (9,998 kPa)

Ambient/Process Temperature

Dry: -40°F to 250°F (-40°C to 120°C)

Glycerin Filled: -4°F to 150°F (-20°C to 65°C)

Accuracy ±1% ANSI/ASME Grade 1A
Enclosure Rating IP66

  • Display Type
  • Results per Page
  • Sort by
4" DIAL, NACE GAUGE, 0 / 600 PSI / KPA, 1 / 4" BOTTOM
  • USD $234.44 /EACH
  • Retail Price USD $234.44 /EACH
  • EACH
  • Qty avail.: 0
4" DIAL, NACE GAUGE, 30"-0-60 PSI / KPA, 1 / 4" BTM
  • USD $257.88 /EACH
  • Retail Price USD $257.88 /EACH
  • EACH
  • Qty avail.: 0
NACE 0 / 100 PSI / KPA 4" x 1 / 2" NPT BOTTOM
  • USD $234.44 /EACH
  • Retail Price USD $234.44 /EACH
  • EACH
  • Qty avail.: 0
NACE 0 / 100 PSI / KPA 4" x 1 / 4" NPT BOTTOM
  • USD $234.44 /EACH
  • Retail Price USD $234.44 /EACH
  • EACH
  • Qty avail.: 0
NACE 0 / 1000 PSI / KPA 4" x 1 / 2" NPT BOTTOM
  • USD $234.44 /EACH
  • Retail Price USD $234.44 /EACH
  • EACH
  • Qty avail.: 0
NACE 0 / 15 PSI / KPA 4" x 1 / 2" NPT BOTTOM
  • USD $234.44 /EACH
  • Retail Price USD $234.44 /EACH
  • EACH
  • Qty avail.: 0
NACE 0 / 15 PSI / KPA 4"x1 / 4" NPT BOTTOM
  • USD $234.44 /EACH
  • Retail Price USD $234.44 /EACH
  • EACH
  • Qty avail.: 0
NACE 0 / 1500 PSI / KPA 4" x 1 / 2" NPT BOTTOM
  • USD $257.88 /EACH
  • Retail Price USD $257.88 /EACH
  • EACH
  • Qty avail.: 0
NACE 0 / 1500 PSI / KPA 4"x1 / 2" NPT BACK
  • USD $283.68 /EACH
  • Retail Price USD $283.68 /EACH
  • EACH
  • Qty avail.: 0
NACE 0 / 160 PSI / KPA 4" x 1 / 2" NPT BOTTOM
  • USD $234.44 /EACH
  • Retail Price USD $234.44 /EACH
  • EACH
  • Qty avail.: 4
NACE 0 / 160 PSI / KPA 4" x 1 / 4"NPT BOTTOM
  • USD $234.44 /EACH
  • Retail Price USD $234.44 /EACH
  • EACH
  • Qty avail.: 0
NACE 0 / 160 PSI / KPA 4"x1 / 4" NPT BACK
  • USD $257.88 /EACH
  • Retail Price USD $257.88 /EACH
  • EACH
  • Qty avail.: 0
NACE 0 / 200 PSI / KPA 4" x 1 / 2" NPT BOTTOM
  • USD $234.44 /EACH
  • Retail Price USD $234.44 /EACH
  • EACH
  • Qty avail.: 1
NACE 0 / 200 PSI / KPA 4" x 1 / 4" NPT BACK
  • USD $257.88 /EACH
  • Retail Price USD $257.88 /EACH
  • EACH
  • Qty avail.: 0
NACE 0 / 2000 PSI / KPA 4" x 1 / 2" NPT BOTTOM
  • USD $257.88 /EACH
  • Retail Price USD $257.88 /EACH
  • EACH
  • Qty avail.: 0
NACE 0 / 30 PSI / KPA 4" x 1 / 2" NPT BOTTOM
  • USD $234.44 /EACH
  • Retail Price USD $234.44 /EACH
  • EACH
  • Qty avail.: 1
NACE 0 / 30 PSI / KPA 4" x 1 / 4" NPT BOTTOM
  • USD $234.44 /EACH
  • Retail Price USD $234.44 /EACH
  • EACH
  • Qty avail.: 0
NACE 0 / 300 PSI / KPA 4" x 1 / 2" NPT BOTTOM
  • USD $234.44 /EACH
  • Retail Price USD $234.44 /EACH
  • EACH
  • Qty avail.: 5
NACE 0 / 300 PSI / KPA 4" x 1 / 4" NPT BOTTOM
  • USD $234.44 /EACH
  • Retail Price USD $234.44 /EACH
  • EACH
  • Qty avail.: 0
NACE 0 / 3000 PSI / KPA 4" x 1 / 2" NPT BOTTOM
  • USD $257.88 /EACH
  • Retail Price USD $257.88 /EACH
  • EACH
  • Qty avail.: 0
NACE 0 / 400 PSI / KPA 4" x 1 / 2" NPT BTM
  • USD $234.44 /EACH
  • Retail Price USD $234.44 /EACH
  • EACH
  • Qty avail.: 2
NACE 0 / 400 PSI / KPA 4'' x 1 / 4'' NPT BACK
  • USD $257.88 /EACH
  • Retail Price USD $257.88 /EACH
  • EACH
  • Qty avail.: 0
NACE 0 / 4000 PSI / KPA 4'' x 1 / 2'' NPT BACK
  • USD $283.68 /EACH
  • Retail Price USD $283.68 /EACH
  • EACH
  • Qty avail.: 0
NACE 0 / 4000 PSI / KPA 4'' x 1 / 2'' NPT BOTTOM
  • USD $257.88 /EACH
  • Retail Price USD $257.88 /EACH
  • EACH
  • Qty avail.: 0
