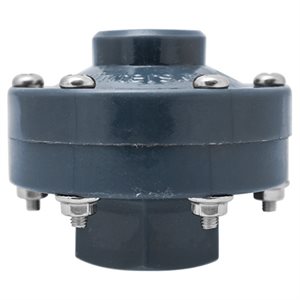

D10 PVC 2-Piece Seal



APPLICATIONS:

  • Provides an economical solution to protect instruments from corrosion and clogging
  • Used to isolate and protect a pressure instrument on ultra-pure or highly corrosive fluid lines
  • Can be used with liquids such as demineralized water, sulphuric acid, hydrochloric acid and caustic gases (such as corrosive air and ammonia), where such fluids will corrode metal instruments
  • Review of chemical compatibility is available upon request

DESCRIPTION & FEATURES:

  • Features a durable and flexible PTFE diaphragm seal, which serves as a protective barrier between the process fluid and instrument
  • High accuracy and dependability
  • ASME B40.100 compliant
  • 5 year warranty

DOCUMENTATION:

Housing PVC (Polyvinyl Chloride, Type 1, Grade 1)
Diaphragm PTFE
Minimum Operating Pressure Vacuum
Maximum Operating Pressure 200 psi (1,380 kPa)
Gauge Connection 1/4” NPTF
Process Connection 1/4”, 1/2” NPTF
Process Temperature 77°F to 104°F (25°C to 40°C)

  • Display Type
  • Results per Page
  • Sort by
1 / 4'' X 1 / 2'' NPT PVC BODY PTFE DIA.
  • USD $88.79 /EACH
  • Retail Price USD $88.79 /EACH
  • EACH
  • Qty avail.: 0
1 / 4'' X 1 / 4'' NPT PVC BODY PTFE DIA.
  • USD $88.79 /EACH
  • Retail Price USD $88.79 /EACH
  • EACH
  • Qty avail.: 10
