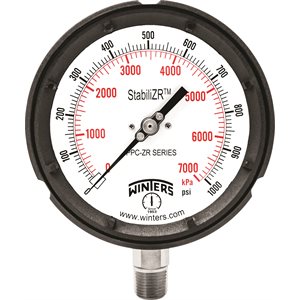

PPC-ZR StabiliZR Process Gauge



APPLICATIONS:

  • Used where operator safety is a must
  • Ideally suited for process, chemical and petroleum industry applications where chemical compatibility and contamination is a concern
  • Processes where pulsation or vibration exist

DESCRIPTION & FEATURES:

  • StabiliZR™ dampened movement minimizes effects of pulsation and vibration without liquid filling
  • Solid phenolic front and polypropylene pressure relief back safety case
  • ±0.5% accuracy
  • Stainless steel full rotary movement
  • Micrometer adjustable pointer for ease in calibration
  • Under and overload stops
  • 316L stainless steel or brass wetted parts standard
  • Restrictor screws standard on dual scale (optional on single scale gauges)
  • ASME B40.100 compliant
  • RoHS compliant (SS and Monel® internals only)
  • CRN registered
  • 5 year warranty

DOCUMENTATION:



 Stainless Steel Internals

Brass Internals

Dial 4.5” (115mm) aluminum with black and red markings 4.5” (115mm) aluminum with black and red markings
Case Black phenolic, with safety pressure relief back, solid front, integral back flange Black phenolic, with pressure relief back, solid front, integral back flange
Solid Wall Phenolic Phenolic
Pressure Relief Back Polypropylene Polypropylene
Window Polycarbonate Polycarbonate
Ring Phenolic Phenolic
Pointer Aluminum, anodized black, micrometer adjustable Aluminum, anodized black, micrometer adjustable
Socket 316L SS  OT 58 brass
Connection 1/4” or 1/2” NPT standard, bottom or back
1/4” or 1/2” NPT standard, bottom or back
Bourdon Tube 316L SS, drawn seamless Phosphor bronze
Movement 304 SS protected with under and overload stops and StabiliZR™ dampened movement (silicone in sealed chamber) 304 SS protected with under and overload stops and StabiliZR™ dampened movement (silicone in sealed chamber)
Gasket Materials Silicone (FKM option) Silicone (FKM option)
Welding TIG Silver Alloy
Over-pressure Limit

25% for pressures up to 1,450 psi (9,998 kPa),

15% for pressures 1,500 psi to 8,700 psi (10,341 kPa to 59,984 kPa),

10% for pressures above 8,701 psi (59,984 kPa)

25% for pressures up to 1,450 psi (9,998 kPa),

15% for pressures 1,500 psi to 8,700 psi (10,341 kPa to 59,984 kPa),

10% for pressures above 8,701 psi (59,984 kPa)

Working Pressure Maximum 75% of full scale value Maximum 75% of full scale value
Ambient Temperature -40°F to 250°F (-40°C to 120°C) -40°F to 250°F (-40°C to 120°C)
Process Temperature -40°F to 250°F (-40°C to 120°C) -40°F to 150°F (-40°C to 65°C)
Accuracy ±0.5% ANSI/ASME Grade 2A ±0.5% ANSI/ASME Grade 2A
Enclosure Rating IP65 IP65
Warning IP65 Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov.


  • Display Type
  • Results per Page
  • Sort by
4.5" DIAL, StabiliZR(TM) 0-15,000 PSI / KPA, 1 / 4" BTM., CONN.
  • USD $167.21 /EACH
  • Retail Price USD $167.21 /EACH
  • EACH
  • Qty avail.: 6
4.5'' DIAL, StabiliZR(TM) 0-1,000 PSI / KPA, 1 / 2'' BACK CONN.
  • USD $163.41 /EACH
  • Retail Price USD $163.41 /EACH
  • EACH
  • Qty avail.: 0
4.5'' DIAL, StabiliZR(TM) 0-1,000 PSI / KPA, 1 / 2'' BACK CONN.
  • USD $137.94 /EACH
  • Retail Price USD $137.94 /EACH
  • EACH
  • Qty avail.: 0
4.5'' DIAL, StabiliZR(TM) 0-1,000 PSI / KPA, 1 / 4'' BACK CONN.
  • USD $163.41 /EACH
  • Retail Price USD $163.41 /EACH
  • EACH
  • Qty avail.: 0
4.5'' DIAL, StabiliZR(TM) 0-1,000 PSI / KPA, 1 / 4'' BACK CONN.
  • USD $137.94 /EACH
  • Retail Price USD $137.94 /EACH
  • EACH
  • Qty avail.: 0
4.5'' DIAL, StabiliZR(TM) 0-1,500 PSI / KPA, 1 / 2'' BACK CONN.
  • USD $158.63 /EACH
  • Retail Price USD $158.63 /EACH
  • EACH
  • Qty avail.: 0
4.5'' DIAL, StabiliZR(TM) 0-1,500 PSI / KPA, 1 / 2'' BACK CONN.
  • USD $187.91 /EACH
  • Retail Price USD $187.91 /EACH
  • EACH
  • Qty avail.: 0
4.5'' DIAL, StabiliZR(TM) 0-1,500 PSI / KPA, 1 / 4'' BACK CONN.
  • USD $187.91 /EACH
  • Retail Price USD $187.91 /EACH
  • EACH
  • Qty avail.: 0
4.5'' DIAL, StabiliZR(TM) 0-10,000 PSI / KPA, 1 / 2'' BACK CONN.
  • USD $158.63 /EACH
  • Retail Price USD $158.63 /EACH
  • EACH
  • Qty avail.: 0
4.5'' DIAL, StabiliZR(TM) 0-10,000 PSI / KPA, 1 / 2'' BACK CONN.
  • USD $187.91 /EACH
  • Retail Price USD $187.91 /EACH
  • EACH
  • Qty avail.: 0
4.5'' DIAL, StabiliZR(TM) 0-10,000 PSI / KPA, 1 / 2'' BTM., CONN.
  • USD $134.72 /EACH
  • Retail Price USD $134.72 /EACH
  • EACH
  • Qty avail.: 0
4.5'' DIAL, StabiliZR(TM) 0-10,000 PSI / KPA, 1 / 2'' BTM., CONN.
  • USD $159.61 /EACH
  • Retail Price USD $159.61 /EACH
  • EACH
  • Qty avail.: 0
4.5'' DIAL, StabiliZR(TM) 0-10,000 PSI / KPA, 1 / 4'' BACK CONN.
  • USD $187.91 /EACH
  • Retail Price USD $187.91 /EACH
  • EACH
  • Qty avail.: 0
4.5'' DIAL, StabiliZR(TM) 0-10,000 PSI / KPA, 1 / 4'' BTM., CONN.
  • USD $159.61 /EACH
  • Retail Price USD $159.61 /EACH
  • EACH
  • Qty avail.: 9
4.5'' DIAL, StabiliZR(TM) 0-100 PSI / KPA, 1 / 2'' BACK CONN.
  • USD $163.41 /EACH
  • Retail Price USD $163.41 /EACH
  • EACH
  • Qty avail.: 0
4.5'' DIAL, StabiliZR(TM) 0-100 PSI / KPA, 1 / 2'' BTM., CONN.
  • USD $152.01 /EACH
  • Retail Price USD $152.01 /EACH
  • EACH
  • Qty avail.: 1
4.5'' DIAL, StabiliZR(TM) 0-100 PSI / KPA, 1 / 4'' BACK CONN.
  • USD $137.94 /EACH
  • Retail Price USD $137.94 /EACH
  • EACH
  • Qty avail.: 0
4.5'' DIAL, StabiliZR(TM) 0-100 PSI / KPA, 1 / 4'' BACK CONN.
  • USD $163.41 /EACH
  • Retail Price USD $163.41 /EACH
  • EACH
  • Qty avail.: 0
4.5'' DIAL, StabiliZR(TM) 0-100 PSI / KPA, 1 / 4'' BTM., CONN.
  • USD $128.31 /EACH
  • Retail Price USD $128.31 /EACH
  • EACH
  • Qty avail.: 0
4.5'' DIAL, StabiliZR(TM) 0-100 PSI / KPA, 1 / 4'' BTM., CONN.
  • USD $152.01 /EACH
  • Retail Price USD $152.01 /EACH
  • EACH
  • Qty avail.: 4
4.5'' DIAL, StabiliZR(TM) 0-1000 PSI / KPA, 1 / 2'' BTM., CONN.
  • USD $152.01 /EACH
  • Retail Price USD $152.01 /EACH
  • EACH
  • Qty avail.: 0
4.5'' DIAL, StabiliZR(TM) 0-1000 PSI / KPA, 1 / 2'' BTM., CONN.
  • USD $128.31 /EACH
  • Retail Price USD $128.31 /EACH
  • EACH
  • Qty avail.: 0
4.5'' DIAL, StabiliZR(TM) 0-1000 PSI / KPA, 1 / 4'' BTM., CONN.
  • USD $152.01 /EACH
  • Retail Price USD $152.01 /EACH
  • EACH
  • Qty avail.: 0
4.5'' DIAL, StabiliZR(TM) 0-1000 PSI / KPA, 1 / 4'' BTM., CONN.
  • USD $128.31 /EACH
  • Retail Price USD $128.31 /EACH
  • EACH
  • Qty avail.: 0
