LY36 WinSMART™ Explosion Proof Differential Pressure Transmitter

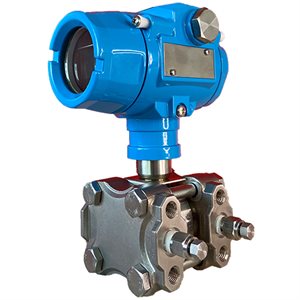

WINSMART™ LY36 SMART EXPLOSION PROOF DIFFERENTIAL PRESSURE TRANSMITTER
CSA Canada and the US


APPLICATIONS:

    • Differential pressure monitoring for oil and gas installations, well head process control, petrochemical installations, power generation equipment and all hazardous locations

DESCRIPTION & FEATURES:

      • Monosilicone-based high performing transmitter
      • Explosion proof smart differential pressure transmitter for hazardous locations
      • Built-in temperature sensor
      • 0.075% or 0.05% accuracy
      • Simple to operate 3-push button control
      • HART® or Modbus communications available
      • Low power option available
      • Re-zero function for safe field calibration
      • 10:1 rangeability allows for installation in any application
      • CRN Pending
      • 5 year warranty

DOCUMENTATION:


    Output Signal 4/20 mA, 2-wire / V = 10.5-55 Vdc
    4/20 mA + HART, 2-wire / V = 16.5-55 Vdc
    1/5 Vdc, 3-wire / V = 10.5-55 Vdc
    Modbus, 4-wire / V = 9-30 Vdc
    LCD Display Available with LCD display (standard) or without LCD display (optional)
    Accuracy 0.075% URL standard, 0.05% optional
    Stability 0.2% per 5 years
    Temperature Range Working: -40/85°C (with display -20/70°C), -40/185°F (with display -4/158°F)
    Storage: -40/110°C (with display -40/85°C), -40/230°F (with display -40/185°F)
    Media: silicone oil filling: -40/120°C (-40/248°F)
    Working Humidity 5-100% at 40°C (104°F)
    Pressure Connection 1/4” or 1/2” NPTM or F, 1/4” or 1/2” GM (large 12mm orifice)
    Housing Rugged die-cast aluminum housing, painted blue
    Wetted Parts 316L SS with PTFE o-ring (Hastelloy® C optional)
    Overload Pressure Maximum of 3,600 or 6,000 psi
    Power Consumption </- 500 mW @ 24 VDC, 20.8 mA
    Vibration 20g, 20Hz…5kHz
    According to GB/T 1827.3 / IEC 61298-3 tests, <0.1% URL
    Shock 20g, 20Hz…5kHz
    Available Pressure Units kPa, Mpa, bar, psi, mmHg, mmH2O, mH2O, inH2O, ftH2O, inHg, mHg, TORR, mbar, g/cm2, kg/cm2, Pa, ATM
    Available Temperature Units Celsius, Fahrenheit
    Protection Class EMI, ESD, RFI, reverse polarity protected
    Approvals CSA, for USA & Canada
    • Class I, Division 1, Group A,B,C and D T6 | Class II, Division 1 Group E, F and G T80oC | Class III
    Intertek, for USA & Canada
    • Class I, Zone 0 A Ex ia IIC T6 Gb | Class I, Division 1, Group A-D, T6 | – 40oC to 60oC
    Protection Class IP66 / IP67
    Weight 8.8 lbs (4.0 kg)
    Operational Life 100 million cycles
