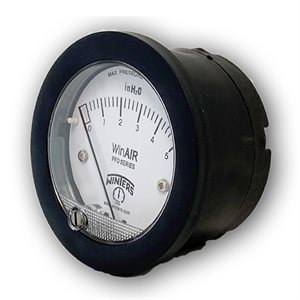

PFD WinAIR Compact Differential Gauge

PFD WinAIR Compact Differential Gauge

PFD WinAIR Compact Differential Gauge

Conforms to CE

APPLICATIONS:

- Low pressure and differential monitoring for air and non-combustible gases including filters, blowers, vacuums, air handlers and clean rooms

DESCRIPTION & FEATURES:

- Resistance-free differential gauge for all air and non-corrosive gas installations
- Compact size and easy to read dial
- Industrial grade nylon case
- Easily accessible re-zero adjustment screw
- 5% full scale accuracy
- Mounting bracket with screws included
- 5 year warranty

DOCUMENTATION:

- SPECIFICATIONS & ORDER INFORMATION
- INSTRUCTION MANUAL

SPECIFICATIONS

Dial	2 1/16” (52.4mm), white aluminum with black markings
Case	Glass filled nylon, black
Lens	Polycarbonate
Ring	Threaded die-cast black aluminum
Process Connection	3/16″ barbed for ID tubing
Movement	Resistance-free and magnetic
Pointer	Aluminum, anodized black
Over-pressure Limit	Maximum pressure of 30 psi / 207 kPa
Ambient/Process Temperatures	20°F to 120°F (-7°C to 49°C)
Accuracy	± 5% of full scale
Approvals	CE
Accessories	Panel mounting bracket, allen key, two nuts & bolts
Installation Attention	Only in vertical position
Warning	This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

PFD COMPACT 0 / 0.5'' H2O PA NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC

PFD COMPACT 0 / 0.5'' H2O PA NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC
Code: PFD20011

USD $174.01 /EACH

Qty:
EACH

Qty avail.: 0

PFD COMPACT 0 / 1.0'' H20 NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC

PFD COMPACT 0 / 1.0'' H20 NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC
Code: PFD20012

USD $174.01 /EACH

Qty:
EACH

Qty avail.: 0

PFD COMPACT 0 / 10.0'' H2O PA NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC

PFD COMPACT 0 / 10.0'' H2O PA NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC
Code: PFD20019

USD $163.12 /EACH

Qty:
EACH

Qty avail.: 0

PFD COMPACT 0 / 125 PA NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC

PFD COMPACT 0 / 125 PA NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC
Code: PFD20213

USD $174.01 /EACH

Qty:
EACH

Qty avail.: 0

PFD COMPACT 0 / 2.0'' H20 NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC

PFD COMPACT 0 / 2.0'' H20 NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC
Code: PFD20013

USD $174.01 /EACH

Qty:
EACH

Qty avail.: 0

PFD COMPACT 0 / 250 PA NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC

PFD COMPACT 0 / 250 PA NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC
Code: PFD20216

USD $174.01 /EACH

Qty:
EACH

Qty avail.: 0

PFD COMPACT 0 / 3.0'' H2O NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC

PFD COMPACT 0 / 3.0'' H2O NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC
Code: PFD20014

USD $174.01 /EACH

Qty:
EACH

Qty avail.: 0

PFD COMPACT 0 / 300 PA NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC

PFD COMPACT 0 / 300 PA NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC
Code: PFD20217

USD $174.01 /EACH

Qty:
EACH

Qty avail.: 0

PFD COMPACT 0 / 5.0'' H2O NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC

PFD COMPACT 0 / 5.0'' H2O NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC
Code: PFD20016

USD $163.12 /EACH

Qty:
EACH

Qty avail.: 0

PFD COMPACT 0 / 500 PA NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC

PFD COMPACT 0 / 500 PA NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC
Code: PFD20218

USD $174.01 /EACH

Qty:
EACH

Qty avail.: 0

PFD COMPACT 0 / 750 PA NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC

PFD COMPACT 0 / 750 PA NYLON HOUSING 3 / 16'' BARBED CONNECTION ±5% ACC
Code: PFD20219

USD $174.01 /EACH

Qty:
EACH

Qty avail.: 0
