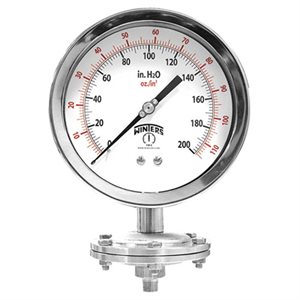

PSG Schaeffer Gauge




APPLICATIONS:

  • Used for low pressure corrosive media where diaphragm seal protection is needed
  • Processes where low or high temperature will affect seal fill fluid

DESCRIPTION & FEATURES:

  • A combination pressure gauge and diaphragm seal forming one unique instrument that measures low pressures where protection from the process media is required
  • Bottom connection only
  • All stainless steel construction
  • A variety of materials available
  • ASME B40.100 compliant
  • CRN registered
  • 5 year warranty

DOCUMENTATION:

Dial 4” (100mm), 6” (150mm) white aluminum with black markings
Case 304 SS
Upper Flange SS (neck and base movements)
Lower Flange 316L SS bottom connection
Lens Acrylic
Connection 1/2” NPTM bottom (female optional)
Diaphragm Element 316 SS, 316 SSl PTFE lined, or Tantalum
Movement All SS – Push rod / connecting link and segment
Pointer Adjustable pointer – aluminum
Wetted Parts 316 SS (other materials available upon request)
Ambient Temperature -13°F to 150°F (-25°C to 65°C)
Process Temperature 212°F (100°C) Maximum
Accuracy ±1.5% of full scale
Enclosure Rating IP54

  • Display Type
  • Results per Page
  • Sort by
4" Dial Schaeffer Gauge, 0 / 6 bar / psi, 316L SST Wetted Safety Glass and 1"-150# RF Process Connection
  • USD $1,926.03 /EACH
  • Retail Price USD $1,926.03 /EACH
  • Qty avail.: 0
4" DIAL, 1 / 4" NPT BTM CONN, 15" WC-0-15" WC
  • Contact us for pricing

  • Qty avail.: 0
4" DIAL, 160 PSI & 10 BAR, 4" SG, 1 / 2" BTM., CONN
  • Contact us for pricing

  • Qty avail.: 0
4" DIAL, SCHAEFFER GAUGE, 0-10 PSI / KPA, 1 / 4" BTM
  • Contact us for pricing

  • Qty avail.: 0
4" DIAL, SCHAEFFER GAUGE,0 / 300" WATER, 1 / 4" BOTTOM
  • Contact us for pricing

  • Qty avail.: 0
4" DIAL, SCHAEFFER, 1 / 2"BTM, 2 PSI / 149 MBAR SAFETY
  • USD $1,054.38 /EACH
  • Retail Price USD $1,054.38 /EACH
  • Qty avail.: 0
4" DIAL, SCHAEFFER,0-160 PSI / 0-11 BAR, 1 / 2" BOTTOM
  • Contact us for pricing

  • Qty avail.: 0
4" SCHAEF, 1 / 4"NPT BTM, 316SS DIAPH, 0-400" WC
  • Contact us for pricing

  • Qty avail.: 0
4" SCHAEFER GAUGE, 1 / 4" BTM, 0-300 PSI / KPA
  • Contact us for pricing

  • Qty avail.: 0
4" SCHAEFER, 1 / 4" NPT BOT, 30" HG - 0 - 15 PSI
  • Contact us for pricing

  • Qty avail.: 0
4" SCHAEFFER GAUGE 0 / 60"H2O 1 / 4" BTM
  • Contact us for pricing

  • Qty avail.: 0
4" SCHAEFFER GAUGE 0 / 60"H2O VAC ,1 / 2" BTM
  • USD $1,683.48 /EACH
  • Retail Price USD $1,683.48 /EACH
  • EACH
  • Qty avail.: 0
4" Schaeffer gauge, 1 / 4" bottom, 0-160" wc / oz.
  • Contact us for pricing

  • Qty avail.: 0
4" Schaeffer gauge, 11 bar / 160 psi, 316 st / st, 1 / 2" bttm, dry, safety glass
  • USD $862.15 /EACH
  • Retail Price USD $862.15 /EACH
  • Qty avail.: 0
4" SCHAEFFER GAUGE; 0 / 30" WATER; 1 / 2" NPT BTM
  • Contact us for pricing

  • Qty avail.: 0
4", -15-0-100" WC,1"150RF, HastC Has-TEF
  • USD $3,606.15 /EACH
  • Retail Price USD $3,606.15 /EACH
  • Qty avail.: 0
4"DIAL,SCHAEFER,1 / 2"BTM, 30" TO 0 HG VAC / -1000MBAR
  • USD $1,051.21 /EACH
  • Retail Price USD $1,051.21 /EACH
  • Qty avail.: 0
4'' SCHAEFFER GAUGE 0-100 PSI / KPA 1 / 2'' BTM CONN SS., SG, SILICONE FILLED, PTFE GASKET
  • USD $990.13 /EACH
  • Retail Price USD $990.13 /EACH
  • Qty avail.: 0
4'' SCHAEFFER GAUGE 0 / 300 PSI 1 / 2'' NPT LM
  • USD $978.43 /EACH
  • Retail Price USD $978.43 /EACH
  • EACH
  • Qty avail.: 0
4'' SCHAEFFER GAUGE 0 / 300 PSI / KPA 1 / 2'' NPT LM
  • USD $978.43 /EACH
  • Retail Price USD $978.43 /EACH
  • EACH
  • Qty avail.: 0
4'' SCHAEFFER GAUGE, 0 / 10 PSI, 1 / 2'' NPT LM
  • USD $978.43 /EACH
  • Retail Price USD $978.43 /EACH
  • EACH
  • Qty avail.: 0
4'' SCHAEFFER GAUGE, 0 / 10 PSI / KPA, 1 / 2'' NPT LM
  • USD $978.43 /EACH
  • Retail Price USD $978.43 /EACH
  • EACH
  • Qty avail.: 0
4'' SCHAEFFER GAUGE, 0 / 10''WC & OZ, 1 / 2'' NPT LM
  • USD $1,076.28 /EACH
  • Retail Price USD $1,076.28 /EACH
  • EACH
  • Qty avail.: 0
4'' SCHAEFFER GAUGE, 0 / 100 PSI, 1 / 2'' NPT LM
  • USD $978.43 /EACH
  • Retail Price USD $978.43 /EACH
  • EACH
  • Qty avail.: 0
