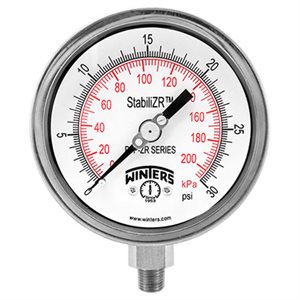

PFP-ZR Premium Stainless Steel StabiliZR Gauge
DownloadAPPLICATIONS:
- Ideally suited for process, chemical and petroleum industry
- Where chemical compatibility and contamination is a concern
DESCRIPTION & FEATURES:
- StabiliZR™ dampened movement minimizes effects of pulsation and vibration without liquid filling
- Restricted orifice standard on dual scale (optional on single scale)
- Stainless steel case
- Under and overload stops
- Back, bottom or panel mounted
- 316L SS wetted parts
- ASME B40.100 compliant (EN837-1 available)
- RoHS compliant
- CRN registered
- 5 year warranty
DOCUMENTATION:
| Dial | 2.5” (63mm), 4” (100mm) white aluminum with black and red markings |
| Case | AISI 304 SS (dry) |
| Lens | Polycarbonate |
| Ring | AISI 304 SS bayonet |
| Socket | 316L SS |
| Connection | 2.5” (63mm) dial: 1/4” NPT 4” (100mm) dial: 1/4”, 1/2” NPT |
| Bourdon Tube | 316L SS |
| Movement | 304 SS (under and overload stops 4" & 6") and StabiliZR™ dampened movement (silicone in sealed chamber) |
| Pointer | 2.5″ (63mm): Aluminum, anodized black 4″ (100mm): Aluminum, anodized black, micrometer adjustable |
| Welding | Laser welded socket to case |
| Over-pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa) 15% for pressures over 1,500 psi (10,342 kPa) |
| Lens Ring Gasket | Buna N |
| Ambient Temperature | -40°F to 250°F (-40°C to 120°C) |
| Process Temperature | -40°F to 250°F (-40°C to 120°C) |
| Working Pressure | Maximum 75% of full scale value |
| Accuracy | 2.5″ (63mm): ±1.5% of full scale 4″ (100mm): ±1% ANSI/ASME Grade 1A |
| Enclosure Rating | NEMA 4X/IP66, EN60529-1 (IEC529-1) |
